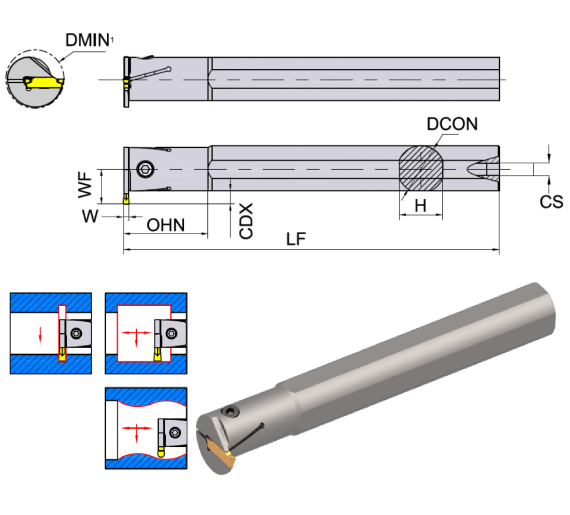

Державки для внутренних канавок
Наименование | На складе | W | CDX | WF | H | LF | DCON | DMIN1 |
---|---|---|---|---|---|---|---|---|
GKIL2520-3T06 | 5 | 3 | 6 | 15.5 | 18 | 150 | 20 | 25 |
GKIR2925-2T05 | 0 | 2 | 5 | 17 | 23 | 200 | 25 | 29 |
GKIR2520-4T06 | 3 | 4 | 6 | 15.5 | 18 | 150 | 20 | 25 |
GKIR3125-6T08 | 3 | 6 | 8 | 19.5 | 23 | 200 | 25 | 31 |
GKIL3125-3T06 | 0 | 3 | 6 | 18.5 | 23 | 200 | 25 | 31 |
GKIR3125-3T06 | 17 | 3 | 6 | 18.5 | 23 | 200 | 25 | 31 |
GKIL3732-3T06 | 4 | 3 | 6 | 21.5 | 30 | 250 | 32 | 37 |
GKIR3732-5T08 | 19 | 5 | 8 | 21.5 | 30 | 250 | 32 | 37 |
GKIR3732-3T06 | 10 | 3 | 6 | 21.5 | 30 | 250 | 32 | 37 |
GKIR3732-8T10 | 2 | 8 | 10 | 23.4 | 30 | 250 | 32 | 37 |
GKIR2520-3T06 | 41 | 3 | 6 | 15.5 | 18 | 150 | 20 | 25 |
GKIR3125-5T08 | 4 | 5 | 8 | 19.5 | 23 | 200 | 25 | 31 |
GKIL3732-4T06 | 0 | 4 | 6 | 21.5 | 30 | 250 | 32 | 37 |
GKIR4540-8T10 | 0 | 8 | 10 | 27.2 | 37 | 300 | 40 | 45 |
GKIL2016-2T04 | 3 | 2 | 4 | 12 | 15 | 125 | 16 | 20 |
GKIR2925-2.5T05 | 11 | 2.5 | 5 | 17 | 23 | 200 | 25 | 29 |
GKIR3732-4T06 | 7 | 4 | 6 | 21.5 | 30 | 250 | 32 | 37 |
GKIL2925-2T05 | 4 | 2 | 5 | 17 | 23 | 200 | 25 | 29 |
GKIR2520-2T05 | 21 | 2 | 5 | 14.5 | 18 | 150 | 20 | 25 |
GKIL2520-2T05 | 1 | 2 | 5 | 14.5 | 18 | 150 | 20 | 25 |
GKIR2520-2.5T05 | 1 | 2.5 | 5 | 14.5 | 18 | 150 | 20 | 25 |
GKIR3125-4T06 | 5 | 4 | 6 | 18.5 | 23 | 200 | 25 | 31 |
GKIR3732-6T08 | 0 | 6 | 8 | 21.5 | 30 | 250 | 32 | 37 |
GKIR2016-2T04 | 41 | 2 | 4 | 12 | 15 | 125 | 16 | 20 |

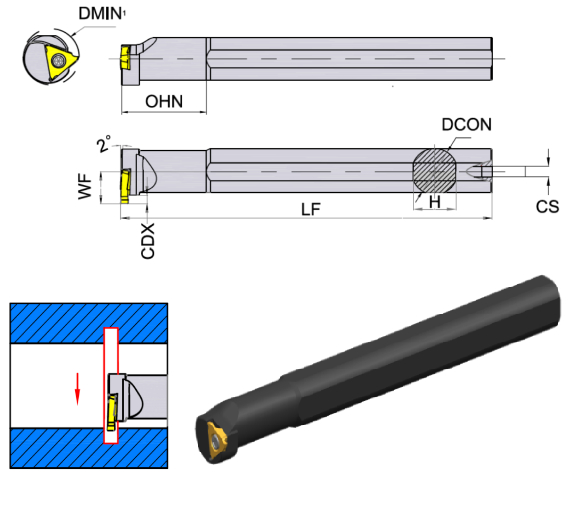

Наименование | На складе | CDX | WF | H | LF | DCON | DMIN1 |
---|---|---|---|---|---|---|---|
GBIL2620Q3 | 1 | 3 | 13 | 18 | 180 | 20 | 25 |
GBIR3525R4 | 1 | 4.5 | 17.5 | 23 | 200 | 25 | 35 |
GBIR2620Q3 | 6 | 3 | 13 | 18 | 180 | 20 | 25 |
Наименование | На складе | W | CDX | WF | H | LF | DCON |
---|---|---|---|---|---|---|---|
HIGNR2020D | 1-4 | 4.5 | 12.1 | 19 | 180 | 20 |
