Корпуса фрез
MFA143
MFA145
MFB145/MFB245
MFB275
MFB288
MEB190
MHB190
MPA100
MPB100
MPC100
MEA190
MEC190
MHC190
MEE190
| Наименование | DC | APmx | LF | Кол-во зубьев | DCON | Для пластин | DCX | KWW | KDP | В корзину |
|---|---|---|---|---|---|---|---|---|---|---|
| MFA143-040R03A16-OD06 |
40 | 4.0 | 40 | 3 | 16 | ODK(M)T0605 | 50 | 8.4 | 5.6 | |
| MFA143-050R04A22-OD06 |
50 | 4.0 | 40 | 4 | 22 | ODK(M)T0605 | 60 | 10.4 | 6.3 | |
| MFA143-063R05A22-OD06 |
63 | 4.0 | 40 | 5 | 22 | ODK(M)T0605 | 72 | 10.4 | 6.3 | |
| MFA143-080R06B27-OD06 |
80 | 4.0 | 50 | 6 | 27 | ODK(M)T0605 | 90 | 12.4 | 7.0 | |
| MFA143-100R07B32-OD06 |
100 | 4.0 | 50 | 7 | 32 | ODK(M)T0605 | 110 | 14.4 | 8.0 | |
| MFA143-125R08B40-OD06 |
125 | 4.0 | 63 | 8 | 40 | ODK(M)T0605 | 135 | 16.4 | 9.0 | |
| MFA143-160R10C40-OD06 |
160 | 4.0 | 63 | 10 | 40 | ODK(M)T0605 | 170 | 16.4 | 9.0 | |
| MFA143-200R12C60-OD06 |
200 | 4.0 | 63 | 12 | 60 | ODK(M)T0605 | 210 | 25.7 | 14.0 |
| Наименование | DC | APmx | LF | Кол-во зубьев | DCON | Для пластин | DCX | KWW | KDP | Подкл. пласт. | В корзину |
|---|---|---|---|---|---|---|---|---|---|---|---|
| MFA145-050R03A22-SE13 |
50 | 6.0 | 40 | 3 | 22 | SEE(M)T13T3 | 63 | 10.4 | 6.3 | ||
| MFA145-050R04A22-SE13 |
50 | 6.0 | 40 | 4 | 22 | SEE(M)T13T3 | 63 | 10.4 | 6.3 | ||
| MFA145-063R04A22-SE13 |
63 | 6.0 | 40 | 4 | 22 | SEE(M)T13T3 | 76 | 10.4 | 6.3 | ||
| MFA145-063R05A22-SE13 |
63 | 6.0 | 40 | 5 | 22 | SEE(M)T13T3 | 76 | 10.4 | 6.3 | ||
| MFA145-080R06B27-SE13 |
80 | 6.0 | 50 | 6 | 27 | SEE(M)T13T3 | 93 | 12.4 | 7.0 | ✔ | |
| MFA145-100R07B32-SE13 |
100 | 6.0 | 50 | 7 | 32 | SEE(M)T13T3 | 113 | 14.4 | 8.0 | ✔ | |
| MFA145-125R08B40-SE13 |
125 | 6.0 | 50 | 8 | 40 | SEE(M)T13T3 | 135 | 16.4 | 9.0 | ✔ | |
| MFA145-160R10C40-SE13 |
160 | 6.0 | 63 | 10 | 40 | SEE(M)T13T3 | 173 | 16.4 | 9.0 | ✔ |
| Наименование | DC | APmx | LF | Кол-во зубьев | DCON | Для пластин | DCX | LU | В корзину |
|---|---|---|---|---|---|---|---|---|---|
| MFA145-050R03P32-SE13 |
50 | 6.0 | 120 | 3 | 32 | SEE(M)T13T3 | 63 | 39 | |
| MFA145-050R04P32-SE13 |
50 | 6.0 | 120 | 4 | 32 | SEE(M)T13T3 | 63 | 39 | |
| MFA145-063R04P32-SE13 |
63 | 6.0 | 120 | 4 | 32 | SEE(M)T13T3 | 76 | 39 | |
| MFA145-063R05P32-SE13 |
63 | 6.0 | 120 | 5 | 32 | SEE(M)T13T3 | 76 | 39 |
| Наименование | DC | APmx | LF | Кол-во зубьев | DCON | Для пластин | DCX | KWW | KDP | Кан. СОЖ | Подкл. пласт. | В корзину |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MFB145-050R03A22-SN12 |
50 | 3.0 | 40 | 3 | 22 | SNE(M)U1206AN*N | 63.5 | 10.4 | 6.3 | ✔ | ✔ | |
| MFB145-050R04A22-SN12 |
50 | 3.0 | 40 | 4 | 22 | SNE(M)U1206AN*N | 63.5 | 10.4 | 6.3 | ✔ | ✔ | |
| MFB145-050R05A22-SN12 |
50 | 3.0 | 40 | 5 | 22 | SNE(M)U1206AN*N | 63.5 | 10.4 | 6.3 | ✔ | ✔ | |
| MFB145-063R04A22-SN12 |
63 | 3.0 | 40 | 4 | 22 | SNE(M)U1206AN*N | 76.5 | 10.4 | 6.3 | ✔ | ✔ | |
| MFB145-063R05A22-SN12 |
63 | 3.0 | 40 | 5 | 22 | SNE(M)U1206AN*N | 76.5 | 10.4 | 6.3 | ✔ | ✔ | |
| MFB145-080R05A27-SN12 |
80 | 3.0 | 50 | 5 | 27 | SNE(M)U1206AN*N | 93.5 | 12.4 | 7.0 | ✔ | ✔ | |
| MFB145-063R06A22-SN12 |
63 | 3.0 | 40 | 6 | 22 | SNE(M)U1206AN*N | 76.5 | 10.4 | 6.3 | ✔ | ✔ | |
| MFB145-080R08A27-SN12 |
80 | 3.0 | 50 | 8 | 27 | SNE(M)U1206AN*N | 93.5 | 12.4 | 7.0 | ✔ | ✔ | |
| MFB145-080R07A27-SN12 |
80 | 3.0 | 50 | 7 | 27 | SNE(M)U1206AN*N | 93.5 | 12.4 | 7.0 | ✔ | ✔ | |
| MFB145-100R06B32-SN12 |
100 | 3.0 | 50 | 6 | 32 | SNE(M)U1206AN*N | 113.5 | 14.4 | 8.0 | ✔ | ||
| MFB145-100R08B32-SN12 |
100 | 3.0 | 50 | 8 | 32 | SNE(M)U1206AN*N | 113.5 | 14.4 | 8.0 | ✔ | ||
| MFB145-100R10B32-SN12 |
100 | 3.0 | 50 | 10 | 32 | SNE(M)U1206AN*N | 113.5 | 14.4 | 8.0 | ✔ | ||
| MFB145-125R07B40-SN12 |
125 | 3.0 | 63 | 7 | 40 | SNE(M)U1206AN*N | 138.5 | 16.4 | 9.0 | ✔ | ||
| MFB145-125R10B40-SN12 |
125 | 3.0 | 63 | 10 | 40 | SNE(M)U1206AN*N | 138.5 | 16.4 | 9.0 | ✔ | ||
| MFB145-125R12B40-SN12 |
125 | 3.0 | 63 | 12 | 40 | SNE(M)U1206AN*N | 138.5 | 16.4 | 9.0 | ✔ | ||
| MFB145-160R08?40-SN12 |
160 | 3.0 | 63 | 8 | 40 | SNE(M)U1206AN*N | 173.5 | 16.4 | 9.0 | ✔ | ||
| MFB145-160R12?40-SN12 |
160 | 3.0 | 63 | 12 | 40 | SNE(M)U1206AN*N | 173.5 | 16.4 | 9.0 | ✔ | ||
| MFB145-160R15?40-SN12 |
160 | 3.0 | 63 | 15 | 40 | SNE(M)U1206AN*N | 173.5 | 16.4 | 9.0 | ✔ | ||
| MFB245-200R10?60-SN12 |
200 | 3.0 | 63 | 10 | 60 | SNE(M)U1206AN*N | 213.5 | 25.7 | 14.0 | ✔ | ||
| MFB145-200R14?60-SN12 |
200 | 3.0 | 63 | 14 | 60 | SNE(M)U1206AN*N | 213.5 | 25.7 | 14.0 | ✔ | ||
| MFB145-200R18?60-SN12 |
200 | 3.0 | 63 | 18 | 60 | SNE(M)U1206AN*N | 213.5 | 25.7 | 14.0 | ✔ | ||
| MFB145-250R12?60-SN12 |
250 | 3.0 | 63 | 12 | 60 | SNE(M)U1206AN*N | 263.5 | 25.7 | 14.0 | ✔ | ||
| MFB145-250R16?60-SN12 |
250 | 3.0 | 63 | 16 | 60 | SNE(M)U1206AN*N | 263.5 | 25.7 | 14.0 | ✔ | ||
| MFB145-250R21?60-SN12 |
250 | 3.0 | 63 | 21 | 60 | SNE(M)U1206AN*N | 263.5 | 25.7 | 14.0 | ✔ | ||
| MFB145-315R15D60-SN12 |
315 | 3.0 | 80 | 15 | 60 | SNE(M)U1206AN*N | 328.5 | 25.7 | 14.0 | ✔ | ||
| MFB145-315R20D60-SN12 |
315 | 3.0 | 80 | 20 | 60 | SNE(M)U1206AN*N | 328.5 | 25.7 | 14.0 | ✔ | ||
| MFB145-315R24D60-SN12 |
315 | 3.0 | 80 | 24 | 60 | SNE(M)U1206AN*N | 328.5 | 25.7 | 14.0 | ✔ | ||
| MFB245-050R03A22-SN12 |
50 | 3.0 | 40 | 3 | 22 | SNE(M)U1206AN*N | 63.5 | 10.4 | 6.3 | ✔ | ||
| MFB245-050R04A22-SN12 |
50 | 3.0 | 40 | 4 | 22 | SNE(M)U1206AN*N | 63.5 | 10.4 | 6.3 | ✔ | ||
| MFB245-050R05A22-SN12 |
50 | 3.0 | 40 | 5 | 22 | SNE(M)U1206AN*N | 63.5 | 10.4 | 6.3 | ✔ | ||
| MFB245-063R04A22-SN12 |
63 | 3.0 | 40 | 4 | 22 | SNE(M)U1206AN*N | 76.5 | 10.4 | 6.3 | ✔ | ||
| MFB245-063R06A22-SN12 |
63 | 3.0 | 40 | 6 | 22 | SNE(M)U1206AN*N | 76.5 | 10.4 | 6.3 | ✔ | ||
| MFB245-063R05A22-SN12 |
63 | 3.0 | 40 | 5 | 22 | SNE(M)U1206AN*N | 76.5 | 10.4 | 6.3 | ✔ | ||
| MFB245-080R05A27-SN12 |
80 | 3.0 | 50 | 5 | 27 | SNE(M)U1206AN*N | 93.5 | 12.4 | 7.0 | ✔ | ||
| MFB245-080R07A27-SN12 |
80 | 3.0 | 50 | 7 | 27 | SNE(M)U1206AN*N | 93.5 | 12.4 | 7.0 | ✔ | ||
| MFB245-080R08A27-SN12 |
80 | 3.0 | 50 | 8 | 27 | SNE(M)U1206AN*N | 93.5 | 12.4 | 7.0 | ✔ | ||
| MFB245-100R06B32-SN12 |
100 | 3.0 | 50 | 6 | 32 | SNE(M)U1206AN*N | 113.5 | 14.4 | 8.0 | |||
| MFB245-100R08B32-SN12 |
100 | 3.0 | 50 | 8 | 32 | SNE(M)U1206AN*N | 113.5 | 14.4 | 8.0 | |||
| MFB245-100R10B32-SN12 |
100 | 3.0 | 50 | 10 | 32 | SNE(M)U1206AN*N | 113.5 | 14.4 | 8.0 | |||
| MFB245-125R07B40-SN12 |
125 | 3.0 | 63 | 7 | 40 | SNE(M)U1206AN*N | 138.5 | 16.4 | 9.0 | |||
| MFB245-125R10B40-SN12 |
125 | 3.0 | 63 | 10 | 40 | SNE(M)U1206AN*N | 138.5 | 16.4 | 9.0 | |||
| MFB245-160R08?40-SN12 |
160 | 3.0 | 63 | 8 | 40 | SNE(M)U1206AN*N | 173.5 | 16.4 | 9.0 | |||
| MFB245-125R12B40-SN12 |
125 | 3.0 | 63 | 12 | 40 | SNE(M)U1206AN*N | 138.5 | 16.4 | 9.0 | |||
| MFB245-160R12?40-SN12 |
160 | 3.0 | 63 | 12 | 40 | SNE(M)U1206AN*N | 173.5 | 16.4 | 9.0 | |||
| MFB245-160R15?40-SN12 |
160 | 3.0 | 63 | 15 | 40 | SNE(M)U1206AN*N | 173.5 | 16.4 | 9.0 | |||
| MFB245-200R14?60-SN12 |
200 | 3.0 | 63 | 14 | 60 | SNE(M)U1206AN*N | 213.5 | 25.7 | 14.0 | |||
| MFB245-315R24D60-SN12 |
315 | 3.0 | 80 | 24 | 60 | SNE(M)U1206AN*N | 328.5 | 25.7 | 14.0 | |||
| MFB245-200R18?60-SN12 |
200 | 3.0 | 63 | 18 | 60 | SNE(M)U1206AN*N | 213.5 | 25.7 | 14.0 | |||
| MFB245-250R12?60-SN12 |
250 | 3.0 | 63 | 12 | 60 | SNE(M)U1206AN*N | 263.5 | 25.7 | 14.0 | |||
| MFB245-250R21?60-SN12 |
250 | 3.0 | 63 | 21 | 60 | SNE(M)U1206AN*N | 263.5 | 25.7 | 14.0 | |||
| MFB245-250R16?60-SN12 |
250 | 3.0 | 63 | 16 | 60 | SNE(M)U1206AN*N | 263.5 | 25.7 | 14.0 | |||
| MFB245-315R20D60-SN12 |
315 | 3.0 | 80 | 20 | 60 | SNE(M)U1206AN*N | 328.5 | 25.7 | 14.0 | |||
| MFB245-315R15D60-SN12 |
315 | 3.0 | 80 | 15 | 60 | SNE(M)U1206AN*N | 328.5 | 25.7 | 14.0 | |||
| MFB145-080L05A27-SN12 |
80 | 3.0 | 50 | 5 | 27 | SNE(M)U1206AN*N | 93.5 | 12.4 | 7.0 | ✔ | ✔ | |
| MFB145-050L04A22-SN12 |
50 | 3.0 | 40 | 4 | 22 | SNE(M)U1206AN*N | 63.5 | 10.4 | 6.3 | ✔ | ✔ | |
| MFB145-080L08A27-SN12 |
80 | 3.0 | 50 | 8 | 27 | SNE(M)U1206AN*N | 93.5 | 12.4 | 7.0 | ✔ | ✔ | |
| MFB145-160L12?40-SN12 |
160 | 3.0 | 63 | 12 | 40 | SNE(M)U1206AN*N | 173.5 | 16.4 | 9.0 | ✔ | ||
| MFB145-200L14?60-SN12 |
200 | 3.0 | 63 | 14 | 60 | SNE(M)U1206AN*N | 213.5 | 25.7 | 14.0 | ✔ | ||
| MFB145-200L18?60-SN12 |
200 | 3.0 | 63 | 18 | 60 | SNE(M)U1206AN*N | 213.5 | 25.7 | 14.0 | ✔ | ||
| MFB245-050L04A22-SN12 |
50 | 3.0 | 40 | 4 | 22 | SNE(M)U1206AN*N | 63.5 | 10.4 | 6.3 | ✔ | ||
| MFB245-080L05A27-SN12 |
80 | 3.0 | 50 | 5 | 27 | SNE(M)U1206AN*N | 93.5 | 12.4 | 7.0 | ✔ | ||
| MFB245-100L06B32-SN12 |
100 | 3.0 | 50 | 6 | 32 | SNE(M)U1206AN*N | 113.5 | 14.4 | 8.0 | |||
| MFB245-063L05A22-SN12 |
63 | 3.0 | 40 | 5 | 22 | SNE(M)U1206AN*N | 76.5 | 10.4 | 6.3 | ✔ | ||
| MFB245-100L08B32-SN12 |
100 | 3.0 | 50 | 8 | 32 | SNE(M)U1206AN*N | 113.5 | 14.4 | 8.0 | |||
| MFB245-080L07A27-SN12 |
80 | 3.0 | 50 | 7 | 27 | SNE(M)U1206AN*N | 93.5 | 12.4 | 7.0 | ✔ | ||
| MFB245-160L12?40-SN12 |
160 | 3.0 | 63 | 12 | 40 | SNE(M)U1206AN*N | 173.5 | 16.4 | 9.0 | |||
| MFB245-125L10B40-SN12 |
125 | 3.0 | 63 | 10 | 40 | SNE(M)U1206AN*N | 138.5 | 16.4 | 9.0 | |||
| MFB245-250L16?60-SN12 |
250 | 3.0 | 63 | 16 | 60 | SNE(M)U1206AN*N | 263.5 | 25.7 | 14.0 | |||
| MFB245-200L14?60-SN12 |
200 | 3.0 | 63 | 14 | 60 | SNE(M)U1206AN*N | 213.5 | 25.7 | 14.0 | |||
| MFB245-315L15D60-SN12 |
315 | 3.0 | 80 | 15 | 60 | SNE(M)U1206AN*N | 328.5 | 25.7 | 14.0 |
| Наименование | DC | APmx | LF | Кол-во зубьев | DCON | Для пластин | DCX | KWW | KDP | Кан. СОЖ | В корзину |
|---|---|---|---|---|---|---|---|---|---|---|---|
| MFB275-050R04A22-SN12 |
50 | 5.0 | 40 | 4 | 22 | SNE(M)U1206ENEN | 55 | 10.4 | 6.3 | ✔ | |
| MFB275-063R05A22-SN12 |
63 | 5.0 | 40 | 5 | 22 | SNE(M)U1206ENEN | 63 | 10.4 | 6.3 | ✔ | |
| MFB275-063R06A22-SN12 |
63 | 5.0 | 40 | 6 | 22 | SNE(M)U1206ENEN | 63 | 10.4 | 6.3 | ✔ | |
| MFB275-080R07A27-SN12 |
80 | 5.0 | 50 | 7 | 27 | SNE(M)U1206ENEN | 85 | 12.4 | 7.0 | ✔ | |
| MFB275-100R08B32-SN12 |
100 | 5.0 | 50 | 8 | 32 | SNE(M)U1206ENEN | 105 | 14.4 | 8.0 | ||
| MFB275-125R10B40-SN12 |
125 | 5.0 | 63 | 10 | 40 | SNE(M)U1206ENEN | 130 | 16.4 | 9.0 | ||
| MFB275-160R12C40-SN12 |
160 | 5.0 | 63 | 12 | 40 | SNE(M)U1206ENEN | 165 | 16.4 | 9.0 | ||
| MFB275-200R14C60-SN12 |
200 | 5.0 | 63 | 14 | 60 | SNE(M)U1206ENEN | 205 | 25.7 | 14.0 | ||
| MFB275-315R20C60-SN12 |
315 | 5.0 | 63 | 20 | 60 | SNE(M)U1206ENEN | 320 | 25.7 | 14.0 | ||
| MFB275-250R16C60-SN12 |
250 | 5.0 | 63 | 16 | 60 | SNE(M)U1206ENEN | 255 | 25.7 | 14.0 |
| Наименование | DC | APmx | LF | Кол-во зубьев | DCON | Для пластин | DCX | KWW | KDP | Кан. СОЖ | В корзину |
|---|---|---|---|---|---|---|---|---|---|---|---|
| MFB288-050R04A22-SN12 |
50 | 7.0 | 40 | 4 | 22 | SNE(M)U1206ZNEN | 51 | 10.4 | 6.3 | ✔ | |
| MFB288-063R05A22-SN12 |
63 | 7.0 | 40 | 5 | 22 | SNE(M)U1206ZNEN | 64 | 10.4 | 6.3 | ✔ | |
| MFB288-063R06A22-SN12 |
63 | 7.0 | 40 | 6 | 22 | SNE(M)U1206ZNEN | 64 | 10.4 | 6.3 | ✔ | |
| MFB288-080R05A27-SN12 |
80 | 7.0 | 50 | 5 | 27 | SNE(M)U1206ZNEN | 81 | 12.4 | 7.0 | ✔ | |
| MFB288-100R08B32-SN12 |
100 | 7.0 | 50 | 8 | 32 | SNE(M)U1206ZNEN | 101 | 14.4 | 8.0 | ||
| MFB288-080R07A27-SN12 |
80 | 7.0 | 50 | 7 | 27 | SNE(M)U1206ZNEN | 81 | 12.4 | 7.0 | ✔ | |
| MFB288-125R10B40-SN12 |
125 | 7.0 | 63 | 10 | 40 | SNE(M)U1206ZNEN | 126 | 16.4 | 9.0 | ||
| MFB288-160R12C40-SN12 |
160 | 7.0 | 63 | 12 | 40 | SNE(M)U1206ZNEN | 161 | 16.4 | 9.0 | ||
| MFB288-200R14C60-SN12 |
200 | 7.0 | 63 | 14 | 60 | SNE(M)U1206ZNEN | 201 | 25.7 | 14.0 | ||
| MFB288-250R16C60-SN12 |
250 | 7.0 | 63 | 16 | 60 | SNE(M)U1206ZNEN | 251 | 25.7 | 14.0 | ||
| MFB288-315R20C60-SN12 |
315 | 7.0 | 80 | 20 | 60 | SNE(M)U1206ZNEN | 316 | 25.7 | 14.0 | ||
| MFB288-063L05A22-SN12 |
63 | 7.0 | 40 | 5 | 22 | SNE(M)U1206ZNEN | 64 | 10.4 | 6.3 | ✔ | |
| MFB288-080L07A27-SN12 |
80 | 7.0 | 50 | 7 | 27 | SNE(M)U1206ZNEN | 81 | 12.4 | 7.0 | ✔ |
| Наименование | DC | APmx | LF | Кол-во зубьев | DCON | Для пластин | DCX | LU | Кан. СОЖ | В корзину |
|---|---|---|---|---|---|---|---|---|---|---|
| MFB288-040R03P32-SN12 |
40 | 7.0 | 110 | 3 | 32 | SNE(M)U1206ZNEN | 41 | 30 | ✔ |
| Наименование | DC | APmx | LF | Кол-во зубьев | DCON | Для пластин | KWW | KDP | Кан. СОЖ | В корзину |
|---|---|---|---|---|---|---|---|---|---|---|
| MEB190-040R04A22-AP16 |
40 | 14.0 | 40 | 4 | 22 | APK(E)T1604 | 8.4 | 5.6 | ✔ | |
| MEB190-040R05A16-AP11 |
40 | 9.0 | 40 | 5 | 16 | APK(E)T1135 | 8.4 | 5.6 | ✔ | |
| MEB190-050R04A22-AP16 |
50 | 14.0 | 40 | 4 | 22 | APK(E)T1604 | 10.4 | 6.3 | ✔ | |
| MEB190-050R07A22-AP11 |
50 | 9.0 | 40 | 7 | 22 | APK(E)T1135 | 10.4 | 6.3 | ✔ | |
| MEB190-063R05A22-AP16 |
63 | 14.0 | 40 | 5 | 22 | APK(E)T1604 | 10.4 | 6.3 | ✔ | |
| MEB190-080R07A27-AP16 |
80 | 14.0 | 50 | 7 | 27 | APK(E)T1604 | 12.4 | 7.0 | ✔ | |
| MEB190-063R07A22-AP11 |
63 | 9.0 | 40 | 7 | 22 | APK(E)T1135 | 10.4 | 6.3 | ||
| MEB190-080R08A27-AP11 |
80 | 9.0 | 50 | 8 | 27 | APK(E)T1135 | 12.4 | 7.0 | ✔ | |
| MEB190-100R08A32-AP16 |
100 | 14.0 | 50 | 8 | 32 | APK(E)T1604 | 14.4 | 8.0 | ✔ | |
| MEB190-100R12B32-AP11 |
100 | 9.0 | 63 | 12 | 32 | APK(E)T1135 | 14.4 | 8.0 | ✔ | |
| MEB190-125R06B40-AP16 |
125 | 14.0 | 63 | 6 | 40 | APK(E)T1604 | 16.4 | 9.0 | ||
| MEB190-125R09B40-AP16 |
125 | 14.0 | 63 | 9 | 40 | APK(E)T1604 | 16.4 | 9.0 | ||
| MEB190-125R11B40-AP16 |
125 | 14.0 | 63 | 11 | 40 | APK(E)T1604 | 16.4 | 9.0 | ||
| MEB190-160R10C40-AP16 |
160 | 14.0 | 63 | 10 | 40 | APK(E)T1604 | 16.4 | 9.0 | ||
| MEB190-200R12C60-AP16 |
160 | 14.0 | 63 | 12 | 60 | APK(E)T1604 | 25.7 | 13.0 |
| Наименование | DC | APmx | LF | Кол-во зубьев | DCON | Для пластин | LU | Кан. СОЖ | В корзину |
|---|---|---|---|---|---|---|---|---|---|
| MEB190-012R02P12-AP06 |
12 | 5.0 | 80 | 2 | 12 | APKT0602 | 20 | ||
| MEB190-016R02W16-AP11 |
16 | 9.0 | 130 | 2 | 16 | APK(E)T1135 | 25 | ||
| MEB190-016R02W16-AP11L |
16 | 9.0 | 200 | 2 | 16 | APK(E)T1135 | 50 | ||
| MEB190-020R02W20-AP11 |
20 | 9.0 | 130 | 2 | 20 | APK(E)T1135 | 25 | ||
| MEB190-020R03W20-AP11L |
20 | 9.0 | 200 | 3 | 20 | APK(E)T1135 | 85 | ✔ | |
| MEB190-020R03W20-AP11 |
20 | 9.0 | 130 | 3 | 20 | APK(E)T1135 | 25 | ✔ | |
| MEB190-025R02W25-AP16 |
25 | 14.0 | 130 | 2 | 25 | APK(E)T1604 | 45 | ✔ | |
| MEB190-025R02W25-AP16L |
25 | 14.0 | 200 | 2 | 25 | APK(E)T1604 | 83 | ✔ | |
| MEB190-032R03W32-AP16 |
32 | 14.0 | 130 | 3 | 32 | APK(E)T1604 | 40 | ✔ | |
| MEB190-025R03W25-AP11 |
25 | 9.0 | 130 | 3 | 25 | APK(E)T1135 | 28 | ✔ | |
| MEB190-025R04W25-AP11 |
25 | 9.0 | 130 | 4 | 25 | APK(E)T1135 | 28 | ||
| MEB190-025R03W25-AP11L |
25 | 9.0 | 200 | 3 | 25 | APK(E)T1135 | 89 | ||
| MEB190-032R03W32-AP16L |
32 | 14.0 | 200 | 3 | 32 | APK(E)T1604 | 54 | ✔ | |
| MEB190-040R03W32-AP16 |
40 | 14.0 | 150 | 3 | 32 | APK(E)T1604 | 45 | ✔ | |
| MEB190-032R04W32-AP11L |
32 | 9.0 | 200 | 4 | 32 | APK(E)T1135 | 90 | ✔ |
| Наименование | DC | APmx | LF | Кол-во зубьев | DCON | Для пластин | LU | Кан. СОЖ | В корзину |
|---|---|---|---|---|---|---|---|---|---|
| MEB190-032R04W32-AP11 |
32 | 9.0 | 130 | 4 | 32 | APK(E)T1135 | 30 | ✔ | |
| MEB190-040R03W40-AP16 |
40 | 14.0 | 150 | 3 | 40 | APK(E)T1604 | 45 | ✔ |
| Наименование | DC | APmx | LF | Кол-во зубьев | DCON | Для пластин | DCSFMS | CRKS | Кан. СОЖ | В корзину |
|---|---|---|---|---|---|---|---|---|---|---|
| MEB190-016R02M08-AP11 |
16 | 9.0 | 26 | 2 | 8.5 | APK(E)T1135 | 14.5 | M8 | ||
| MEB190-032R04M16-AP11 |
32 | 9.0 | 43 | 4 | 17 | APK(E)T1135 | 28.5 | M16 | ✔ |
| Наименование | DC | APmx | LF | Кол-во зубьев | DCON | Для пластин | DCSFMS | CRKS | Кан. СОЖ | В корзину |
|---|---|---|---|---|---|---|---|---|---|---|
| MEB190-020R03M10-AP11 |
20 | 9.0 | 31 | 3 | 10.5 | APK(E)T1135 | 17.8 | M10 | ✔ | |
| MEB190-025R02M12-AP16 |
25 | 14.0 | 35 | 2 | 17 | APK(E)T1135 | 23 | M12 | ✔ | |
| MEB190-025R03M12-AP11 |
25 | 9.0 | 35 | 3 | 12.5 | APK(E)T1135 | 23 | M12 | ✔ | |
| MEB190-025R04M12-AP11 |
25 | 9.0 | 35 | 4 | 12.5 | APK(E)T1135 | 23 | M12 | ✔ | |
| MEB190-032R03M16-AP16 |
32 | 14.0 | 43 | 3 | 17 | APK(E)T1135 | 28.5 | M16 | ✔ | |
| MEB190-035R05M16-AP1 |
35 | 9.0 | 43 | 5 | 17 | APK(E)T1135 | 28.5 | M16 | ✔ | |
| MEB190-032R05M16-AP11 |
32 | 9.0 | 43 | 5 | 17 | APK(E)T1135 | 28.5 | M16 | ✔ |
| Наименование | DC | APmx | LF | Кол-во зубьев | DCON | Для пластин | KWW | KDP | Кан. СОЖ | В корзину |
|---|---|---|---|---|---|---|---|---|---|---|
| MHB190-050R03A22-AP16 |
50 | 43.0 | 70 | 3/9 | 22 | APK(E)T1604 | 10.4 | 6.3 | ✔ | |
| MHB190-050R04A22-AP11 |
50 | 39.9 | 70 | 4/16 | 22 | APK(E)T1135 | 10.4 | 6.3 | ||
| MHB190-063R04A27-AP16 |
63 | 57.0 | 85 | 4/16 | 27 | APK(E)T1604 | 12.4 | 6.3 | ✔ | |
| MHB190-080R05A32-AP16 |
80 | 57.0 | 85 | 5/20 | 32 | APK(E)T1604 | 14.4 | 7.0 | ✔ |
| Наименование | DC | APmx | LF | Кол-во зубьев | DCON | Для пластин | KWW | KDP | Кан. СОЖ | В корзину |
|---|---|---|---|---|---|---|---|---|---|---|
| MHB190-063R05A27-AP11 |
63 | 39.9 | 70 | 5/20 | 27 | APK(E)T1135 | 12.4 | 6.3 | ✔ |
| Наименование | DC | APmx | LF | Кол-во зубьев | DCON | Для пластин | LU | Кан. СОЖ | В корзину |
|---|---|---|---|---|---|---|---|---|---|
| MHB190-032R02W32-AP11 |
32 | 39.9 | 130 | 2/8 | 32 | APK(E)T1135 | 65 | ✔ | |
| MHB190-040R03W32-AP11 |
40 | 39.9 | 130 | 3/12 | 32 | APK(E)T1135 | 66 | ✔ |
| Наименование | DC | APmx | LF | Кол-во зубьев | DCON | Для пластин | KWW | KDP | Прижим | В корзину |
|---|---|---|---|---|---|---|---|---|---|---|
| MPA100-040R05A16-RD08 |
40 | 4.0 | 40 | 5 | 16 | RD**0803 | 8.4 | 6.3 | ||
| MPA100-050R04A22-RD10 |
50 | 5.0 | 50 | 4 | 22 | RD**10T3 | 10.4 | 6.3 | ✔ | |
| MPA100-050R04A22-RD12 |
50 | 6.0 | 50 | 4 | 22 | RD**1204 | 10.4 | 6.3 | ✔ | |
| MPA100-063R04A22-RD16 |
63 | 8.0 | 50 | 4 | 22 | RD**1604 | 10.4 | 6.3 | ||
| MPA100-050R05A22-RD12 |
50 | 6.0 | 50 | 5 | 22 | RD**1204 | 10.4 | 6.3 | ✔ | |
| MPA100-063R05A22-RD12 |
63 | 6.0 | 50 | 5 | 22 | RD**1204 | 10.4 | 6.3 | ✔ | |
| MPA100-080R05A27-RD16 |
80 | 8.0 | 50 | 5 | 27 | RD**1604 | 12.4 | 7.0 | ||
| MPA100-100R06B32-RD16 |
100 | 8.0 | 50 | 6 | 32 | RD**1604 | 14.4 | 8.0 | ||
| MPA100-125R07B40-RD16 |
125 | 8.0 | 63 | 7 | 40 | RD**1604 | 16.4 | 9.0 |
| Наименование | DC | APmx | LF | Кол-во зубьев | DCON | Для пластин | LU | Прижим | В корзину |
|---|---|---|---|---|---|---|---|---|---|
| MPA100-010R02P16-RD05 |
10 | 2.5 | 120 | 2 | 16 | RD**0501 | 40 | ||
| MPA100-012R02P16-RD05 |
12 | 2.5 | 120 | 2 | 16 | RD**0501 | 40 | ||
| MPA100-016R02P16-RD07 |
16 | 3.2 | 160 | 2 | 16 | RD**0702 | 50 | ||
| MPA100-017R02P16-RD08 |
17 | 4.0 | 160 | 2 | 16 | RD**0803 | 50 | ||
| MPA100-032R02P32-RD12 |
32 | 6.0 | 200 | 2 | 32 | RD**1204 | 60 | ✔ | |
| MPA100-032R02P32-RD16 |
32 | 8.0 | 200 | 2 | 32 | RD**1204 | 65 | ||
| MPA100-032R03P32-RD12S |
32 | 6.0 | 160 | 3 | 32 | RD**1204 | 50 | ✔ | |
| MPA100-035R02P32-RD16 |
35 | 8.0 | 200 | 2 | 32 | RD**1204 | 65 |
| Наименование | DC | APmx | LF | Кол-во зубьев | DCON | Для пластин | LU | Прижим | В корзину |
|---|---|---|---|---|---|---|---|---|---|
| MPA100-020R02P20-RD08 |
20 | 4.0 | 160 | 2 | 20 | RD**0803 | 50 | ||
| MPA100-020R02P20-RD10 |
20 | 5.0 | 160 | 2 | 20 | RD**10T3 | 50 | ✔ | |
| MPA100-025R02P20-RD10 |
25 | 5.0 | 160 | 2 | 20 | RD**10T3 | 50 | ✔ | |
| MPA100-032R03P32-RD12 |
32 | 6.0 | 200 | 3 | 32 | RD**1204 | 60 | ✔ |
| Наименование | DC | APmx | LF | Кол-во зубьев | DCON | Для пластин | KWW | KDP | Прижим | В корзину |
|---|---|---|---|---|---|---|---|---|---|---|
| MPB100-040R04A16-RP10 |
40 | 5.0 | 40 | 4 | 16 | RP**1003 | 8.4 | 6.3 | ✔ | |
| MPB100-040R05A16-RP08 |
40 | 4.0 | 40 | 5 | 16 | RP**08T2 | 8.4 | 6.3 | ||
| MPB100-050R04A22-RP10 |
50 | 5.0 | 50 | 4 | 22 | RP**1003 | 10.4 | 6.3 | ✔ | |
| MPB100-050R04A22-RP12 |
50 | 6.0 | 50 | 4 | 22 | RP**1204 | 10.4 | 6.3 | ✔ | |
| MPB100-063R04A22-RP16 |
63 | 8.0 | 40 | 4 | 22 | RP**1606 | 10.4 | 6.3 | ||
| MPB100-063R05A22-RP12 |
63 | 6.0 | 50 | 5 | 22 | RP**1204 | 10.4 | 6.3 | ✔ | |
| MPB100-063R06A22-RP12 |
63 | 6.0 | 50 | 6 | 22 | RP**1204 | 10.4 | 6.3 | ✔ | |
| MPB100-080R06A27-RP16 |
80 | 8.0 | 50 | 6 | 27 | RP**1606 | 12.4 | 7.0 | ||
| MPB100-100R07B32-RP16 |
100 | 8.0 | 50 | 7 | 32 | RP**1606 | 14.4 | 8.0 | ||
| MPB100-125R08B40-RP16 |
125 | 8.0 | 63 | 8 | 40 | RP**1606 | 16.4 | 9.0 |
| Наименование | DC | APmx | LF | Кол-во зубьев | DCON | Для пластин | LU | Прижим | В корзину |
|---|---|---|---|---|---|---|---|---|---|
| MPB100-016R02P16-RP08S |
16 | 4.0 | 120 | 2 | 16 | RP**08T2 | 40 | ||
| MPB100-016R02P16-RP08 |
16 | 4.0 | 160 | 2 | 16 | RP**08T2 | 50 | ||
| MPB100-020R02P20-RP08 |
20 | 4.0 | 160 | 2 | 20 | RP**08T2 | 50 | ||
| MPB100-020R02P20-RP10 |
20 | 5.0 | 160 | 2 | 20 | RP**1003 | 50 | ✔ | |
| MPB100-025R02P20-RP10 |
25 | 5.0 | 160 | 2 | 20 | RP**1003 | 50 | ✔ | |
| MPB100-025R02P20-RP10L |
25 | 5.0 | 200 | 2 | 20 | RP**1003 | 50 | ✔ | |
| MPB100-025R02P25-RP12 |
25 | 6.0 | 160 | 2 | 25 | RP**1204 | 50 | ✔ | |
| MPB100-025R03P25-RP08 |
25 | 4.0 | 160 | 3 | 25 | RP**08T2 | 50 | ||
| MPB100-032R02P25-RP12 |
32 | 6.0 | 160 | 2 | 25 | RP**1204 | 50 | ✔ | |
| MPB100-032R03P25-RP12 |
32 | 6.0 | 160 | 3 | 25 | RP**1204 | 50 | ✔ | |
| MPB100-032R02P25-RP12L |
32 | 6.0 | 200 | 2 | 25 | RP**1204 | 60 | ✔ | |
| MPB100-040R02P32-RP16 |
40 | 8.0 | 200 | 2 | 32 | RP**1606 | 65 |
| Наименование | DC | APmx | LF | Кол-во зубьев | DCON | Для пластин | KWW | KDP | В корзину |
|---|---|---|---|---|---|---|---|---|---|
| MPC100-050R04A22-RC12 |
50 | 6.0 | 50 | 4 | 22 | RC**1204 | 10.4 | 6.3 | |
| MPC100-050R05A22-RC12 |
50 | 6.0 | 50 | 5 | 22 | RC**1204 | 10.4 | 6.3 | |
| MPC100-063R04A22-RC12 |
63 | 6.0 | 50 | 4 | 22 | RC**1204 | 10.4 | 6.3 | |
| MPC100-063R04A22-RC16 |
63 | 8.0 | 50 | 4 | 22 | RC**1606 | 10.4 | 6.3 | |
| MPC100-063R05A22-RC16 |
63 | 8.0 | 50 | 5 | 22 | RC**1606 | 10.4 | 6.3 | |
| MPC100-063R05A22-RC12 |
63 | 6.0 | 50 | 5 | 22 | RC**1204 | 10.4 | 6.3 | |
| MPC100-080R05A27-RC16 |
80 | 8.0 | 50 | 5 | 27 | RC**1606 | 12.4 | 7.0 | |
| MPC100-063R06A22-RC12 |
63 | 6.0 | 50 | 6 | 22 | RC**1204 | 10.4 | 6.3 | |
| MPC100-080R06A27-RC12 |
80 | 6.0 | 50 | 6 | 27 | RC**1204 | 12.4 | 7.0 | |
| MPC100-080R06A27-RC16 |
80 | 8.0 | 50 | 6 | 27 | RC**1606 | 12.4 | 7.0 | |
| MPC100-100R06B32-RC16 |
100 | 8.0 | 50 | 6 | 32 | RC**1606 | 14.4 | 8.0 | |
| MPC100-100R06B32-RC20 |
100 | 10.0 | 50 | 6 | 32 | RC**2006 | 14.4 | 8.0 | |
| MPC100-125R07B40-RC20 |
125 | 10.0 | 63 | 7 | 40 | RC**2006 | 16.4 | 9.0 | |
| MPC100-160R08B40-RC20 |
160 | 10.0 | 63 | 8 | 40 | RC**2006 | 16.4 | 9.0 |
| Наименование | DC | APmx | LF | Кол-во зубьев | DCON | Для пластин | LU | В корзину |
|---|---|---|---|---|---|---|---|---|
| MPC100-020R02P20-RC10 |
20 | 5.0 | 110 | 2 | 20 | RC**10T3 | 60 | |
| MPC100-025R02P20-RC10 |
25 | 5.0 | 160 | 2 | 20 | RC**10T3 | 50 | |
| MPC100-032R02P25-RC12 |
32 | 6.0 | 200 | 2 | 25 | RC**1204 | 50 | |
| MPC100-040R03P32-RC12 |
40 | 6.0 | 200 | 3 | 32 | RC**1204 | 50 |
| Наименование | DC | APmx | LF | Кол-во зубьев | DCON | Для пластин | KWW | KDP | В корзину |
|---|---|---|---|---|---|---|---|---|---|
| MEA190-040R05A16-AP11 |
40 | 9.0 | 40 | 5 | 16 | APMT1135 | 10.4 | 6.3 | |
| MEA190-050R04A22-AP16 |
50 | 14.0 | 50 | 4 | 22 | APMT1604 | 10.4 | 6.3 |
| Наименование | DC | APmx | LF | Кол-во зубьев | DCON | Для пластин | LU | В корзину |
|---|---|---|---|---|---|---|---|---|
| MEA190-016R02P15-AP11 |
16 | 9.0 | 150 | 2 | 15 | APMT1135 | 70 |
| Наименование | DC | APmx | LF | Кол-во зубьев | DCON | Для пластин | KWW | KDP | В корзину |
|---|---|---|---|---|---|---|---|---|---|
| MEA190-050R06A22-AP11 |
50 | 9.0 | 50 | 6 | 22 | APMT1135 | 10.4 | 6.3 | |
| MEA190-063R05A22-AP16 |
63 | 14.0 | 50 | 5 | 22 | APMT1604 | 10.4 | 6.3 | |
| MEA190-080R06A27-AP16 |
80 | 14.0 | 50 | 6 | 27 | APMT1604 | 12.4 | 7.0 | |
| MEA190-100R07B32-AP16 |
100 | 14.0 | 63 | 7 | 32 | APMT1604 | 14.4 | 8.0 | |
| MEA190-125R08B40-AP16 |
125 | 14.0 | 63 | 8 | 40 | APMT1604 | 16.4 | 9.0 | |
| MEA190-200R12C60-AP16 |
200 | 14.0 | 63 | 12 | 60 | APMT1604 | 25.7 | 14.0 | |
| MEA190-160R10C40-AP16 |
160 | 14.0 | 63 | 10 | 40 | APMT1604 | 16.4 | 9.0 | |
| MEA190-250R14C60-AP16 |
250 | 14.0 | 63 | 14 | 60 | APMT1604 | 25.7 | 14.0 |
| Наименование | DC | APmx | LF | Кол-во зубьев | DCON | Для пластин | LU | В корзину |
|---|---|---|---|---|---|---|---|---|
| MEA190-016R02P16-AP11 |
16 | 9.0 | 120 | 2 | 16 | APMT1135 | 40 | |
| MEA190-016R02P16-AP11L |
16 | 9.0 | 170 | 2 | 16 | APMT1135 | 50 | |
| MEA190-020R02P20-AP11 |
20 | 9.0 | 160 | 2 | 20 | APMT1135 | 50 | |
| MEA190-025R02P25-AP16 |
25 | 14.0 | 160 | 2 | 25 | APMT1604 | 50 | |
| MEA190-020R03P20-AP11 |
20 | 9.0 | 160 | 3 | 20 | APMT1135 | 50 | |
| MEA190-025R04P25-AP11 |
25 | 9.0 | 160 | 4 | 25 | APMT1135 | 50 | |
| MEA190-025R03P25-AP11 |
25 | 9.0 | 160 | 3 | 25 | APMT1135 | 50 | |
| MEA190-032R03P32-AP16 |
32 | 14.0 | 160 | 3 | 32 | APMT1604 | 50 | |
| MEA190-032R04P32-AP11 |
32 | 9.0 | 160 | 4 | 32 | APMT1135 | 80 |
| Наименование | DC | APmx | LF | Кол-во зубьев | DCON | Для пластин | KWW | KDP | Кан. СОЖ | В корзину |
|---|---|---|---|---|---|---|---|---|---|---|
| MEC190-050R04A22-AN12 |
50 | 9.0 | 40 | 4 | 22 | ANKX1207 | 10.4 | 6.3 | ✔ | |
| MEC190-050R04A22-AN16 |
50 | 14.0 | 40 | 4 | 22 | ANKX1607 | 10.4 | 6.3 | ✔ | |
| MEC190-063R05A22-AN12 |
63 | 9.0 | 40 | 5 | 22 | ANKX1207 | 10.4 | 6.3 | ✔ | |
| MEC190-063R05A22-AN16 |
63 | 14.0 | 40 | 5 | 22 | ANKX1607 | 10.4 | 6.3 | ✔ | |
| MEC190-080R05A27-AN16 |
80 | 14.0 | 50 | 5 | 27 | ANKX1607 | 12.4 | 7.0 | ✔ | |
| MEC190-080R06A27-AN16 |
80 | 14.0 | 50 | 6 | 27 | ANKX1607 | 12.4 | 7.0 | ✔ | |
| MEC190-100R07B32-AN16 |
100 | 14.0 | 50 | 7 | 32 | ANKX1607 | 14.4 | 8.0 | ||
| MEC190-100R08B32-AN16 |
100 | 14.0 | 50 | 8 | 32 | ANKX1607 | 14.4 | 8.0 | ||
| MEC190-125R10B40-AN16 |
125 | 14.0 | 63 | 10 | 40 | ANKX1607 | 16.4 | 9.0 | ||
| MEC190-160R12C40-AN16 |
160 | 14.0 | 63 | 12 | 40 | ANKX1607 | 16.4 | 9.0 | ||
| MEC190-200R14C60-AN16 |
200 | 14.0 | 63 | 14 | 60 | ANKX1607 | 25.7 | 14.0 |
| Наименование | DC | APmx | LF | Кол-во зубьев | DCON | Для пластин | LU | Кан. СОЖ | В корзину |
|---|---|---|---|---|---|---|---|---|---|
| MEC190-032R02W32-AN12 |
32 | 9.0 | 110 | 2 | 32 | ANKX1207 | 40 | ||
| MEC190-032R02W32-AN16 |
32 | 14.0 | 150 | 2 | 32 | ANKX1607 | 40 | ||
| MEC190-032R03W32-AN16 |
32 | 14.0 | 150 | 3 | 32 | ANKX1607 | 40 | ||
| MEC190-032R02W32-AN16L |
32 | 14.0 | 200 | 2 | 32 | ANKX1607 | 54 | ||
| MEC190-032R03W32-AN16L |
32 | 14.0 | 200 | 3 | 32 | ANKX1607 | 40 | ||
| MEC190-040R03W32-AN12 |
40 | 9.0 | 130 | 3 | 32 | ANKX1207 | 40 | ✔ | |
| MEC190-040R03W32-AN16 |
40 | 14.0 | 150 | 3 | 32 | ANKX1607 | 40 | ✔ |
| Наименование | DC | APmx | LF | Кол-во зубьев | DCON | Для пластин | KWW | KDP | Кан. СОЖ | В корзину |
|---|---|---|---|---|---|---|---|---|---|---|
| MHB190-050R03A22-AN12 |
50 | 43.0 | 70 | 3/12 | 22 | ANKX1207 | 10.4 | 6.3 | ✔ | |
| MHB190-050R03A22-AN16 |
50 | 43.0 | 70 | 3/9 | 22 | ANKX1607 | 10.4 | 6.3 | ✔ | |
| MHB190-080R05A32-AN16 |
80 | 57.0 | 85 | 5/15 | 32 | ANKX1607 | 14.4 | 7.0 | ✔ |
| Наименование | DC | APmx | LF | Кол-во зубьев | DCON | Для пластин | KWW | KDP | Кан. СОЖ | В корзину |
|---|---|---|---|---|---|---|---|---|---|---|
| MHB190-063R04A27-AN12 |
63 | 43.0 | 70 | 4/16 | 27 | ANKX1207 | 12.4 | 6.3 | ✔ | |
| MHB190-064R04A27-AN16 |
63 | 57.0 | 70 | 4/12 | 27 | ANKX1607 | 12.4 | 6.3 | ✔ |
| Наименование | DC | APmx | LF | Кол-во зубьев | DCON | Для пластин | LU | Кан. СОЖ | В корзину |
|---|---|---|---|---|---|---|---|---|---|
| MHC190-040R02W32-AN12 |
40 | 43.0 | 130 | 2/8 | 32 | ANKX1207 | 66 | ✔ |

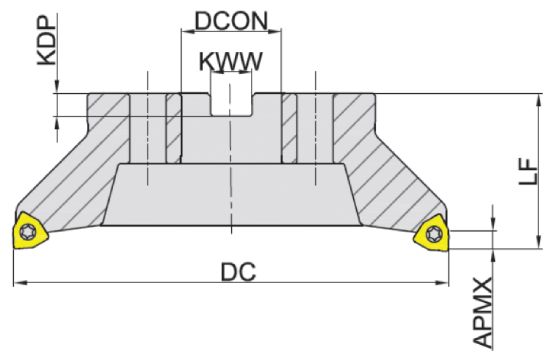

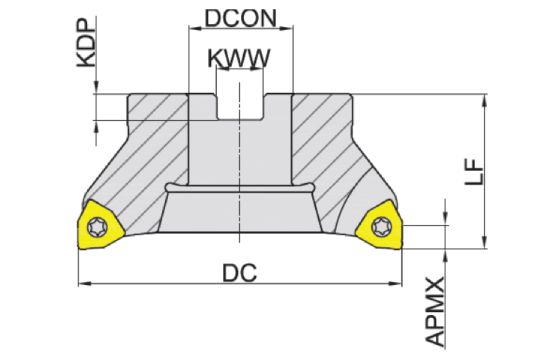

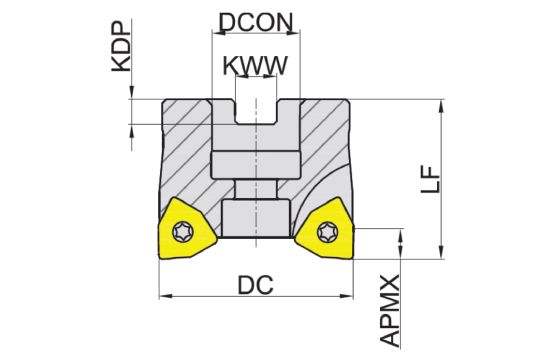

| Наименование | DC | APmx | LF | Кол-во зубьев | DCON | Для пластин | KWW | KDP | Кан. СОЖ | В корзину |
|---|---|---|---|---|---|---|---|---|---|---|
| MEE190-040R06A16-WN04 |
40 | 4.0 | 40 | 6 | 16 | WNGU0403 | 8.4 | 5.6 | ✔ | |
| MEE190-050R04A22-WN08 |
50 | 7.5 | 40 | 4 | 22 | WNGU0806 | 10.4 | 6.3 | ✔ | |
| MEE190-050R05A22-WN08 |
50 | 7.5 | 40 | 5 | 22 | WNGU0806 | 10.4 | 6.3 | ✔ | |
| MEE190-063R06A22-WN08 |
63 | 7.5 | 40 | 6 | 22 |
