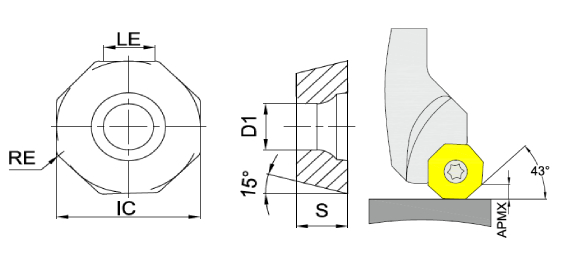

Восьмиугольник 135°
Наименование | На складе | Обрабат. мат. | S | IC | D1 | RE | APmx | |
---|---|---|---|---|---|---|---|---|
ODMT060508-GH-GA4225 | 110 | 5.56 | 15.875 | 5.56 | 0.8 | |||
ODMT060508-GH-GM2140 | 205 | 5.56 | 15.875 | 5.56 | 0.8 | 4 | ||
ODMT060508-GM-GS4130 | 423 | 5.56 | 15.875 | 5.56 | 0.8 | 4 | ||
ODKT060508-GL-GA4230 | 0 | 5.56 | 15.875 | 5.56 | 0.8 | 4 | ||
ODMT060508-GM-GA4230 | 670 | 5.56 | 15.875 | 5.56 | 0.8 | 4 | ||
ODKT060508-GM-GS4130 | 25 | 5.56 | 15.875 | 5.56 | 0.8 | |||
ODMT060508-GH-GA4230 | 120 | 5.56 | 15.875 | 5.56 | 0.8 | 4 | ||
ODMT060508-GH-GK4125 | 0 | 5.56 | 15.875 | 5.56 | 0.8 | 4 | ||
ODMT060508-GM-GP2115 | 10 | 5.56 | 15.875 | 5.56 | 0.8 | 4 | ||
ODKT060508-GM-GM2140 | 50 | 5.56 | 15.875 | 5.56 | 0.8 | 4 | ||
ODMT060508-GM-GK2115 | 0 | 5.56 | 15.875 | 5.56 | 0.8 | 4 | ||
ODKT060508-AL-GN9125 | 154 | 5.56 | 15.875 | 5.56 | 0.8 | 4 | ||
ODMT060508-GH-GS4130 | 0 | 5.56 | 15.875 | 5.56 | 0.8 | 4 | ||
ODMT060508-GM-GP4225 | 20 | 5.56 | 15.875 | 5.56 | 0.8 | 4 | ||
ODKT060508-GM-GA4230 | 180 | 5.56 | 15.875 | 5.56 | 0.8 | 4 | ||
ODMT060508-GM-GM2140 | 90 | 5.56 | 15.875 | 5.56 | 0.8 | 4 |
