Фрезерные оправки/патроны
| Наименование | Cклад | C | D | L | L1 |
|---|---|---|---|---|---|
| C16-ER16M-80-B | 14 | 16 | 22 | 120.3 | 80 |
| C20-ER20M-C60-B | 4 | 20 | 28 | 110.2 | 60 |
| C25-ER20M-C60-B | 4 | 25 | 28 | 99.5 | 60 |
| C16-ER16M-100-B | 14 | 16 | 22 | 140.3 | 100 |
| C16-ER16M-150-B | 14 | 16 | 22 | 190.3 | 150 |
| C32-ER20M-C70-B | 5 | 32 | 28 | 107 | 70 |
| C20-ER25M-100-B | 14 | 20 | 35 | 156.7 | 100 |
| C25-ER16M-C70-B | 5 | 25 | 22 | 110.3 | 70 |
| C16-ER11M-100-B | 3 | 16 | 16 | 134.3 | 100 |
| C20-ER16M-150-B | 9 | 20 | 22 | 186.8 | 150 |
| C32-ER16M-C60-B | 5 | 32 | 22 | 100.3 | 60 |
| C10-ER8M-100-B | 15 | 10 | 10 | 127.5 | 100 |
| C22-ER16M-C60-B | 5 | 22 | 22 | 96.8 | 60 |
| C20-ER16M-100-B | 12 | 20 | 22 | 136.8 | 100 |
| C12-ER8M-55-B | 13 | 12 | 12 | 74.5 | 55 |
| C20-ER16M-C60-B | 5 | 20 | 22 | 96.8 | 60 |
| C25-ER25U-C70-B | 5 | 25 | 42 | 126.7 | 70 |
| C25-ER16M-C60-B | 5 | 25 | 22 | 100.3 | 60 |
| C20-ER11M-C60-B | 5 | 20 | 16 | 76.6 | 60 |
| C20-ER20M-100-B | 10 | 20 | 28 | 150.2 | 100 |
| C25-ER25U-C60-B | 4 | 25 | 42 | 116.7 | 60 |
| C16-ER11M-50-B | 15 | 16 | 16 | 84.3 | 50 |
| Наименование | Cклад | D | dm | L | Диапазон зажима |
|---|---|---|---|---|---|
| HSK63A-GLC25-110-B | 1 | 62 | 25 | 110 | 6-25 |
| HSK63A-GLC32-115-B | 1 | 72 | 32 | 115 | 6-32 |
| HSK63A-GLC20-105-B | 0 | 52 | 20 | 105 | 6-20 |
| Наименование | Cклад | L | d1 | Диапазон зажима | T |
|---|---|---|---|---|---|
| BT50-ER32-70-B | 2 | 70 | 50 | 1-20 | M22x1.5P |
| BT50-ER20-70-B | 3 | 70 | 34 | 1-13 | M14x1P |
| BT50-ER32-100-B | 0 | 100 | 50 | 1-20 | M22x1.5P |
| BT50-ER16-70-B | 3 | 70 | 28 | 1-10 | M11×1P |
| BT50-ER25-100-B | 0 | 100 | 42 | 1-16 | M18x1P |
| BT50-ER20-100-B | 3 | 100 | 34 | 1-13 | M14x1P |
| BT50-ER25-200-B | 3 | 200 | 42 | 1-16 | M18x1P |
| BT50-ER32-150-B | 3 | 150 | 50 | 1-20 | M22x1.5P |
| BT50-ER25-150-B | 0 | 150 | 42 | 1-16 | M18x1P |
| BT50-ER16-200-B | 3 | 200 | 28 | 1-10 | M11×1P |
| BT50-ER16-150-B | 150 | 28 | 1-10 | M11×1P | |
| BT50-ER32-200-B | 3 | 200 | 50 | 1-20 | M22x1.5P |
| BT50-ER20-150-B | 3 | 150 | 34 | 1-13 | M14x1P |
| BT50-ER25-70-B | 3 | 70 | 42 | 1-16 | M18x1P |
| BT50-ER32-300-B | 3 | 300 | 50 | 1-20 | M22x1.5P |
| BT50-ER16-100-B | 3 | 100 | 28 | 1-10 | M11X1P |
| BT50-ER20-200-B | 3 | 200 | 34 | 1-13 | M14x1P |
| BT50-ER32-250-B | 3 | 250 | 50 | 1-20 | M22x1.5P |
| Наименование | Cклад | D | dm | L |
|---|---|---|---|---|
| BT50-GLC42-165-B | 2 | 87 | 42 | 165 |
| BT50-GLC20-105-B | 2 | 55 | 20 | 105 |
| BT50-GLC42-110-B | 2 | 87 | 42 | 110 |
| BT50-GLC42-135-B | 2 | 87 | 42 | 135 |
| BT50-GLC32-200-B | 2 | 72 | 32 | 200 |
| BT50-GLC25-135-B | 2 | 62 | 25 | 135 |
| BT50-GLC32-165-B | 2 | 72 | 32 | 165 |
| BT50-GLC25-110-B | 2 | 62 | 25 | 110 |
| BT50-GLC32-110-B | 0 | 72 | 32 | 110 |
| BT50-GLC32-135-B | 0 | 72 | 32 | 135 |
| BT50-GLC20-135-B | 2 | 55 | 20 | 135 |

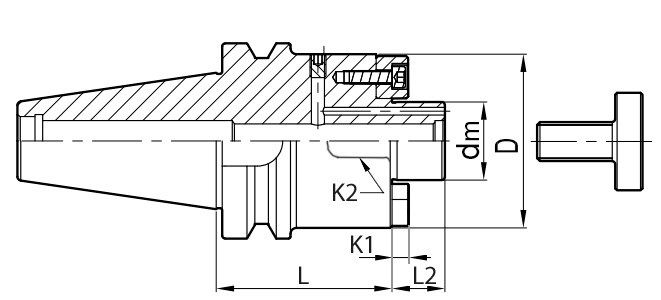

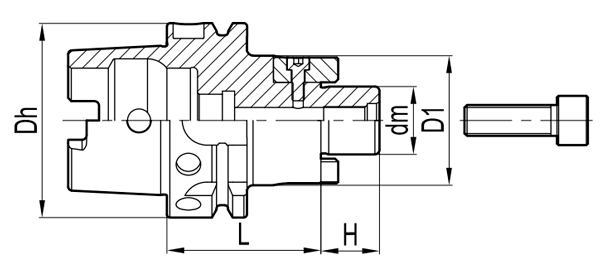

| Наименование | Cклад | D | L1 | L2 | K1 | K2 |
|---|---|---|---|---|---|---|
| BT40-FMB16C-60-S | 2 | 34 | 60 | 17 | ||
| BT40-FMB27-60-B | 11 | 60 | 60 | 20 | 5.8 | 12 |
| BT40-FMB27C-60-S | 2 | 60 | 60 | 21 | ||
| BT40-FMB22C-60-S | 2 | 42 | 60 | 19 | ||
| BT40-FMB22-100-B | 7 | 48 | 100 | 18 | 4.8 | 10 |
| BT40-FMB32C-60-S | 0 | 78 | 60 | 24 | ||
| BT40-FMB22C-120-S | 0 | 42 | 120 | 19 | ||
| BT40-FMB22-45-B | 3 | 50 | 45 | 18 | 4.8 | 10 |
| BT40-FMB40C-60-S | 2 | 89 | 60 | 27 | ||
| BT40-FMB27-100-B | 12 | 60 | 100 | 20 | 5.8 | 12 |
| BT40-FMB22C-90-S | 2 | 42 | 90 | 19 | ||
| BT40-FMB22-60-B | 8 | 50 | 60 | 18 | 4.8 | 10 |
| BT40-FMB27-45-B | 11 | 60 | 45 | 20 | 5.8 | 12 |
| BT40-FMB27C-120-S | 1 | 60 | 120 | 21 |
| Наименование | Cклад | D1 | L1 |
|---|---|---|---|
| HSK63A-GHP20-90-S | 2 | 20 | 90 |
| Наименование | Cклад | dm | L | T | l1 | l2 | l3 | d2 |
|---|---|---|---|---|---|---|---|---|
| BT40-GLN20-75-S | 0 | 20 | M18X2.0P | 75 | 65 | |||
| BT40-GLN25-100-B | 7 | 25 | 165.4 | M18X2.0P | 24 | 25 | 65 | |
| BT40-GLN32-100-B | 4 | 32 | 165.4 | M20X2.0P | 24 | 28 | 72 | |
| BT40-GLN25-105-S | 1 | 25 | M18X2.0P | 105 | 65 |
| Наименование | Cклад | D | L1 | L2 | K1 | K2 |
|---|---|---|---|---|---|---|
| BT50-FMB22-150-B | 3 | 60 | 150 | 18 | 4.8 | 10 |
| BT50-FMB27-100-B | 3 | 60 | 100 | 20 | 5.8 | 12 |
| BT50-FMB22-200-B | 3 | 60 | 200 | 18 | 4.8 | 10 |
| BT50-FMB27-150-B | 3 | 60 | 150 | 20 | 5.8 | 12 |
| BT50-FMB60C-75-S | 0 | 129 | 75 | 38 | ||
| BT50-FMB22-100-B | 3 | 60 | 100 | 18 | 4.8 | 10 |

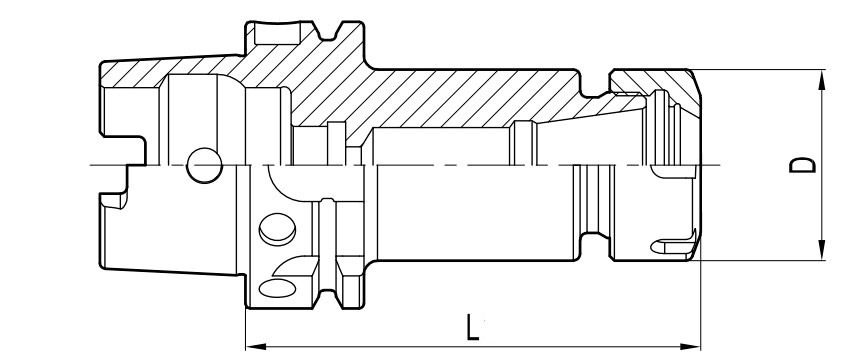

| Наименование | Cклад | D | Диапазон зажима | L1 |
|---|---|---|---|---|
| HSK100A-ER20-160-B | 3 | 28 | 1-13 | 160 |
| HSK100A-ER32-100-B | 5 | 50 | 1-20 | 100 |
| HSK100A-ER20-100-B | 5 | 28 | 1-13 | 100 |
| HSK100A-ER32-160-B | 3 | 50 | 1-20 | 160 |
| HSK100A-ER16-160-B | 3 | 28 | 1-10 | 160 |
| HSK100A-ER16-100-B | 5 | 28 | 1-10 | 100 |
| HSK100A-ER25-100-B | 5 | 42 | 1-16 | 100 |

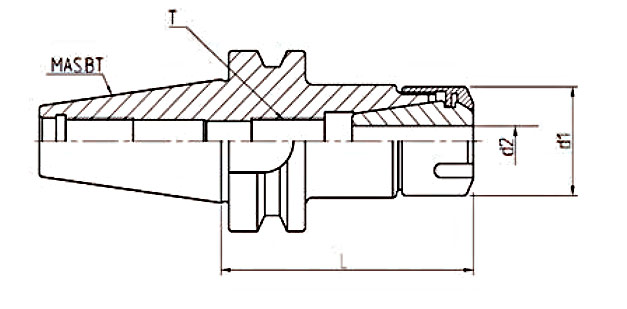

| Наименование | Cклад | L | d1 | Диапазон зажима | T |
|---|---|---|---|---|---|
| BT40-ER16-100-S | 0 | 100 | 28 | 1-10 | M11×1P |
| BT40-ER16-100-B | 0 | 100 | 28 | 1-10 | M6×1P |
| BT40-ER25-80-S | 0 | 80 | 42 | 1-16 | M18x1P |
| BT40-ER32-70-B | 2 | 70 | 50 | 1-20 | M22x1.5P |
| BT40-ER20-70-B | 15 | 70 | 34 | 1-13 | M14x1P |
| BT40-ER25-150-B | 0 | 150 | 42 | 1-16 | M18x1P |
| BT40-ER20-100-B | 1 | 100 | 34 | 1-13 | M14x1P |
| BT40-ER32-150-B | 4 | 150 | 50 | 1-20 | M22x1.5P |
| BT40-ER16-70-B | 0 | 70 | 28 | 1-10 | M11×1P |
| BT40-ER40-100-B | 4 | 100 | 63 | 3-26 | M28X1.5P |
| BT40-ER25-70-B | 10 | 70 | 42 | 1-16 | M18x1P |
| BT40-ER16-70-S | 0 | 70 | 28 | 1-10 | M11×1P |
| BT40-ER11-100-B | 15 | 100 | 19 | 1-7 | M6×1P |
| BT40-ER40-80-S | 5 | 80 | 63 | 3-26 | M28X1.5P |
| BT40-ER20-150-B | 13 | 150 | 34 | 1-13 | M14x1P |
| BT40-ER16-150-B | 0 | 150 | 28 | 1-10 | M11×1P |
| BT40-ER32-100-B | 0 | 100 | 50 | 1-20 | M22x1.5P |
| BT40-ER11-70-B | 15 | 70 | 19 | 1-7 | M6×1P |
| BT40-ER25-100-B | 0 | 100 | 42 | 1-16 | M18x1P |
| Наименование | Cклад | L | d1 | Диапазон зажима | T |
|---|---|---|---|---|---|
| BT30-ER16-70-B | 3 | 70 | 28 | 1-10 | M11×1P |
| BT30-ER32-70-B | 6 | 70 | 50 | 1-20 | M22x1.5P |
| BT30-ER16-100-B | 3 | 100 | 28 | 1-10 | M11×1P |

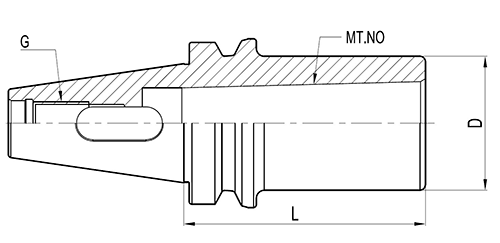

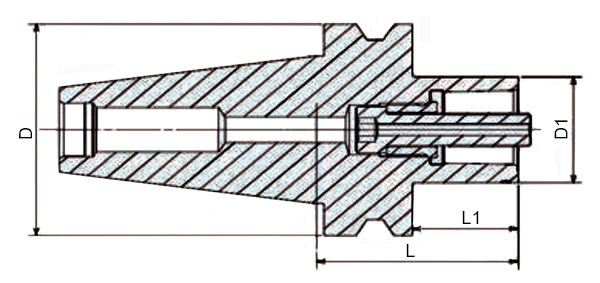

| Наименование | Cклад | Конус Морзе | D | L |
|---|---|---|---|---|
| BT40-MTA4-90-B | 3 | № 4 | 50 | 90 |
| BT40-MTA3-75-B | 0 | № 3 | 40 | 75 |
| BT40-MTA3-135-B | 5 | № 3 | 40 | 135 |
| Наименование | Cклад | D | L1 | L2 | K1 |
|---|---|---|---|---|---|
| BT30-FMB27-45-B | 3 | 60 | 45 | 20 | 5.8 |
| BT30-FMB27-60-B | 3 | 60 | 60 | 20 | 5.8 |
| BT30-FMB22-45-B | 3 | 50 | 45 | 18 | 4.8 |
| BT30-FMB22-60-B | 3 | 50 | 60 | 18 | 4.8 |
| Наименование | Cклад | D | Диапазон зажима | L1 |
|---|---|---|---|---|
| HSK63A-ER32-100-B | 2 | 50 | 1-20 | 100 |
| HSK63A-ER16-100-B | 2 | 28 | 1-10 | 100 |
| HSK63A-ER20-100-B | 3 | 34 | 1-13 | 100 |
| HSK63A-ER25-100-B | 0 | 42 | 1-16 | 100 |
| Наименование | Cклад | D | dm | L |
|---|---|---|---|---|
| BT40-GLC20-80-S | 1 | 55 | 20 | 80 |
| BT40-GLC32-105-B | 0 | 72 | 32 | 105 |
| BT40-GLC20-80-B | 2 | 55 | 20 | 80 |
| BT40-GLC32-135-B | 0 | 72 | 32 | 135 |
| BT40-GLC20-120-B | 3 | 55 | 20 | 120 |
| BT40-GLC20-95-B | 2 | 55 | 20 | 95 |
| Наименование | Cклад | D1 | L1 |
|---|---|---|---|
| BT40-GHP18-75-S | 1 | 18 | 75 |
| BT40-GHP20-75-S | 1 | 20 | 75 |
| BT40-GHP32-83-S | 0 | 32 | 80 |
| Наименование | Cклад | dm | L | T | l2 | l3 | d2 |
|---|---|---|---|---|---|---|---|
| BT50-GLN32-105-B | 3 | 32 | 206.8 | M20X2.0P | 24 | 28 | 72 |
| BT50-GLN25-100-B | 3 | 25 | 201.8 | M18X2.0P | 24 | 25 | 65 |

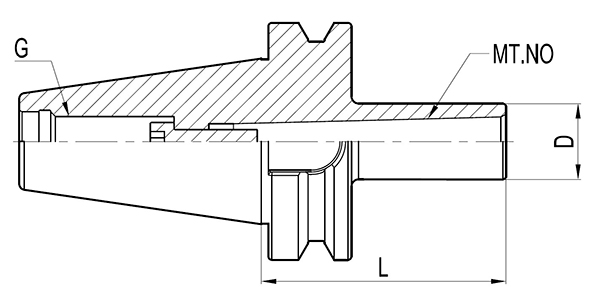

| Наименование | Cклад | Конус Морзе | D | L |
|---|---|---|---|---|
| BT40-MTB4-90-B | 1 | № 4 | 50 | 90 |
| BT40-MTB3-75-B | 1 | № 3 | 40 | 75 |

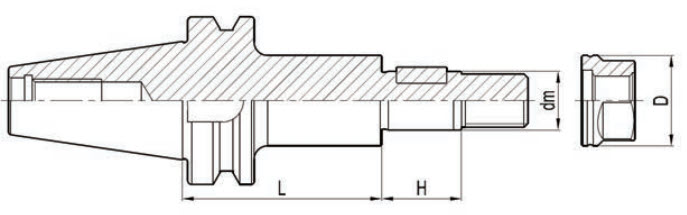

| Наименование | Cклад | D | dm | L |
|---|---|---|---|---|
| BT50-SC50-90-S | 2 | 69 | 50 | 90 |
