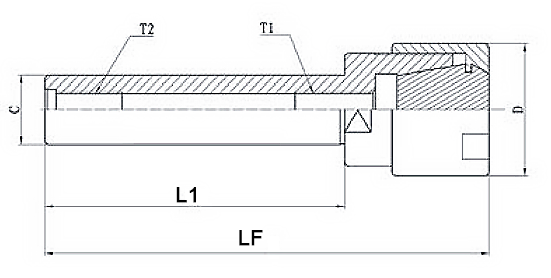

Фрезерные оправки/патроны Цанговый удлинитель ER
| Наименование | Cклад | C | D | L | L1 |
|---|---|---|---|---|---|
| C16-ER16M-100-B | 14 | 16 | 22 | 140.3 | 100 |
| C16-ER16M-150-B | 14 | 16 | 22 | 190.3 | 150 |
| C32-ER20M-C70-B | 5 | 32 | 28 | 107 | 70 |
| C20-ER25M-100-B | 14 | 20 | 35 | 156.7 | 100 |
| C25-ER16M-C70-B | 5 | 25 | 22 | 110.3 | 70 |
| C16-ER11M-100-B | 3 | 16 | 16 | 134.3 | 100 |
| C20-ER16M-150-B | 9 | 20 | 22 | 186.8 | 150 |
| C32-ER16M-C60-B | 5 | 32 | 22 | 100.3 | 60 |
| C22-ER16M-C60-B | 5 | 22 | 22 | 96.8 | 60 |
| C20-ER16M-100-B | 12 | 20 | 22 | 136.8 | 100 |
| C12-ER8M-55-B | 13 | 12 | 12 | 74.5 | 55 |
| C20-ER16M-C60-B | 5 | 20 | 22 | 96.8 | 60 |
| C25-ER25U-C70-B | 5 | 25 | 42 | 126.7 | 70 |
| C25-ER16M-C60-B | 5 | 25 | 22 | 100.3 | 60 |
| C20-ER11M-C60-B | 5 | 20 | 16 | 76.6 | 60 |
| C10-ER8M-100-B | 15 | 10 | 10 | 127.5 | 100 |
| C20-ER20M-100-B | 10 | 20 | 28 | 150.2 | 100 |
| C25-ER25U-C60-B | 4 | 25 | 42 | 116.7 | 60 |
| C16-ER11M-50-B | 15 | 16 | 16 | 84.3 | 50 |
| C16-ER16M-80-B | 14 | 16 | 22 | 120.3 | 80 |
| C20-ER20M-C60-B | 4 | 20 | 28 | 110.2 | 60 |
| C25-ER20M-C60-B | 4 | 25 | 28 | 99.5 | 60 |
