Ломаный треугольник 80° (W***)

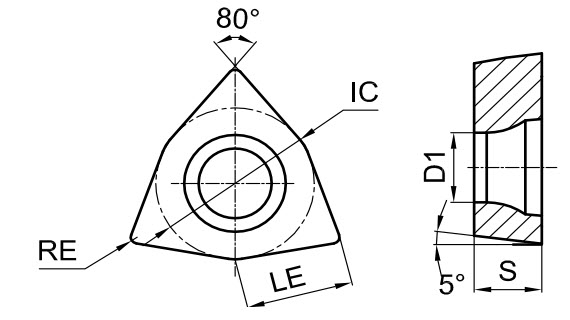

| Наименование | Склад | RE | Обрабат. мат. | Тип обраб. | D1 | IC | LE | S | В корзину |
|---|---|---|---|---|---|---|---|---|---|
| WBGT020104L-P-GAT7120 | 60 | 0.4 |
P
M
|
|
2.3 | 3.97 | 2.5 | 1.62 | |
| WBGT020104L-P-GS3125 | 50 | 0.4 |
M
S
|
|
2.3 | 3.97 | 2.5 | 1.59 | |
| WBGT020104L-P-GX3120 | 10 | 0.4 |
P
M
|
|
2.3 | 3.97 | 2.5 | 1.59 | |
| WBGT020102L-P-GAT7120 | 0 | 0.2 |
P
M
|
|
2.3 | 3.97 | 2.5 | 1.62 | |
| WBGT020102L-P-GP91TF | 0 | 0.2 |
P
M
K
|
|
2.3 | 3.97 | 2.5 | 1.62 | |
| WBGTL30202L-P-GAT7120 | 0 | 0.2 |
P
M
|
|
2.3 | 4.76 | 3.2 | 2.38 | |
| WBGT020101L-P-GAT7120 | 0 | 0.1 |
M
|
|
2.3 | 3.97 | 2.5 | 1.62 | |
| WBGTL30204L-P-GAT7120 | 0 | 0.4 |
P
M
|
|
2.3 | 4.76 | 3.2 | 2.38 |

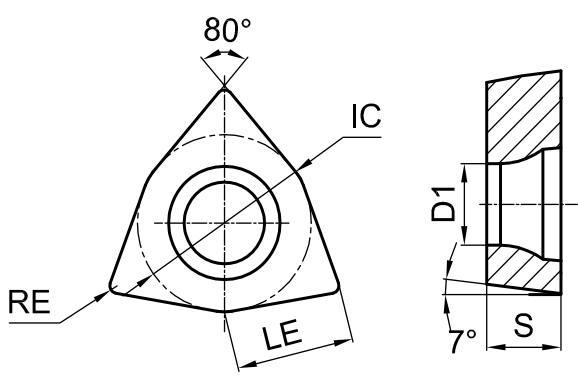

| Наименование | Склад | RE | Обрабат. мат. | Тип обраб. | D1 | IC | LE | S | В корзину |
|---|---|---|---|---|---|---|---|---|---|
| WCMT06T304-GP-GP1225 | 50 | 0.4 |
P
K
|
|
4.4 | 9.525 | 6.5 | 3.97 | |
| WCMT06T308-GP-GM1125 | 30 | 0.8 |
M
|
|
4.4 | 9.525 | 6.5 | 3.97 | |
| WCMT06T304-GP-GM1125 | 0 | 0.4 |
M
|
|
4.4 | 9.525 | 6.5 | 3.97 |

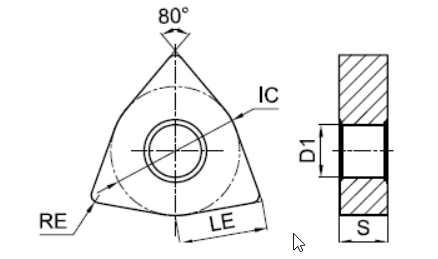

| Наименование | Склад | RE | Обрабат. мат. | Тип обраб. | D1 | IC | LE | S | В корзину |
|---|---|---|---|---|---|---|---|---|---|
| WNMG080404-SF-GM3225 | 97 | 0.4 |
M
|
|
3.81 | 12.7 | 8.7 | 4.76 | |
| WNMG080404-SF-GS3115 | 954 | 0.4 |
M
S
|
|
5.16 | 12.7 | 8.7 | 4.76 | |
| WNMG080412-LM-GM3220 | 95 | 1.2 |
M
|
|
5.16 | 12.7 | 8.7 | 4.76 | |
| WNMG080408-SF-GS3115 | 947 | 0.8 |
M
S
|
|
3.81 | 12.7 | 8.7 | 4.76 | |
| WNMG080412-BM-GP1105 | 92 | 1.2 |
P
|
|
5.16 | 12.7 | 8.7 | 4.76 | |
| WNMG080408-QR-GPT6110 | 91 | 0.8 |
P
M
|
|
5.16 | 12.7 | 8.7 | 4.76 | |
| WNMG080412-EM-GST7130 | 90 | 1.2 |
S
|
|
5.16 | 12.7 | 8.7 | 4.76 | |
| WNMG080408-BM-GP1115 | 9 | 0.8 |
P
M
|
|
5.16 | 12.7 | 8.7 | 4.76 | |
| WNMG080404-LM-GM3225 | 9 | 0.4 |
M
|
|
5.16 | 12.7 | 8.7 | 4.76 | |
| WNMG080404-PF-GP1105 | 85 | 0.4 |
P
|
5.16 | 12.7 | 8.7 | 4.76 | ||
| WNMG080408-MM-GM3225 | 80 | 0.8 |
M
|
5.16 | 12.7 | 8.7 | 4.76 | ||
| WNMG080408-QM-GP1135 | 80 | 0.8 |
P
|
|
5.16 | 12.7 | 8.7 | 4.76 | |
| WNMG080404-TP-GP91TM | 80 | 0.4 |
P
M
K
|
|
5.16 | 12.7 | 8.7 | 4.76 | |
| WNMG080408-CM-GP1130 | 8 | 0.8 |
P
|
|
5.16 | 12.7 | 8.7 | 4.76 | |
| WNMG060408-QM-GPT6110 | 8 | 0.8 |
P
M
|
|
3.81 | 9.525 | 6.5 | 4.76 | |
| WNMG080412-EM-GS3210 | 8 | 1.2 |
M
S
|
|
5.16 | 12.7 | 8.7 | 4.76 | |
| WNMG080412-EM-GS3220 | 8 | 1.2 |
M
S
|
|
5.16 | 12.7 | 8.7 | 4.76 | |
| WNMG080408-QR-GPT6120 | 77 | 0.8 |
P
|
|
5.16 | 12.7 | 8.7 | 4.76 | |
| WNMG080408-QM-GM1125 | 70 | 0.8 |
M
|
|
5.16 | 12.7 | 8.7 | 4.76 | |
| WNMG080404-QF-GP1225 | 65 | 0.4 |
P
K
|
|
5.16 | 12.7 | 8.7 | 4.76 | |
| WNMG080404-SM-GM1125 | 62 | 0.4 |
M
|
|
5.16 | 12.7 | 8.7 | 4.76 | |
| WNMG080404-SM-GS3115 | 619 | 0.4 |
M
S
|
|
5.16 | 12.7 | 8.7 | 4.76 | |
| WNMG080408-GF-GP1225 | 60 | 0.8 |
P
K
|
|
5.16 | 12.7 | 8.7 | 4.76 | |
| WNMG080412-GM-GP1115 | 60 | 1.2 |
P
M
|
|
5.16 | 12.7 | 8.7 | 4.76 | |
| WNMG080412-QM-GP1225 | 58 | 1.2 |
P
K
|
|
5.16 | 12.7 | 8.7 | 4.76 | |
| WNMG080404-LM-GM1125 | 548 | 0.4 |
M
|
|
5.16 | 12.7 | 8.7 | 4.76 | |
| WNMG060404-SM-GM1125 | 54 | 0.4 |
M
|
|
3.81 | 9.525 | 6.5 | 4.76 | |
| WNMG080408-QM-GP1120 | 51 | 0.8 |
P
M
|
|
5.16 | 12.7 | 8.7 | 4.76 | |
| WNMG06T304-GM-GP1225 | 50 | 0.4 |
P
K
|
|
3.81 | 9.526 | 6.6 | 3.97 | |
| WNMG080404-UK-GK1125 | 50 | 0.4 |
P
M
K
|
|
5.16 | 12.7 | 8.7 | 4.76 | |
| WNMG080404-QF-GP1115 | 50 | 0.4 |
P
M
|
|
5.16 | 12.7 | 8.7 | 4.76 | |
| WNMG080404-YF-GM3220 | 50 | 0.4 |
M
|
|
5.16 | 12.7 | 8.7 | 4.76 | |
| WNMG080412-QR-GPT6120 | 49 | 1.2 |
P
|
|
5.16 | 12.7 | 8.7 | 4.76 | |
| WNMG080408-BM-GP1105 | 480 | 0.8 |
P
|
|
5.16 | 12.7 | 8.7 | 4.76 | |
| WNMG080404-TP-GP31TM | 47 | 0.4 |
P
K
|
|
5.16 | 12.7 | 8.7 | 4.76 | |
| WNMG080408-QR-GP1135 | 468 | 0.8 |
P
|
|
5.16 | 12.7 | 8.7 | 4.76 | |
| WNMG080404-SM-GS4130 | 458 | 0.4 |
M
S
|
|
5.16 | 12.7 | 8.7 | 4.76 | |
| WNMG060404-GM-GP1225 | 43 | 0.4 |
P
K
|
|
3.81 | 9.525 | 6.5 | 4.76 | |
| WNMG080408-QR-GP1225 | 426 | 0.8 |
P
K
|
|
5.16 | 12.7 | 8.7 | 4.76 | |
| WNMG080408-LR-GM1225 | 41 | 0.8 |
M
|
|
5.16 | 12.7 | 8.7 | 4.76 | |
| WNMG080408R-SV-GP1225 | 40 | 0.8 |
P
K
|
|
5.16 | 12.7 | 8.7 | 4.76 | |
| WNMG080404-GF-GP1115 | 40 | 0.4 |
P
M
|
|
5.16 | 12.7 | 8.7 | 4.76 | |
| WNMG080412-QR-GPT6130 | 40 | 1.2 |
P
K
|
|
5.16 | 12.7 | 8.7 | 4.76 | |
| WNMG080412-LR-GM1125 | 40 | 1.2 |
M
|
|
5.16 | 12.7 | 8.7 | 4.76 | |
| WNMG080404-QM-GPT6120 | 40 | 0.4 |
P
|
|
5.16 | 12.7 | 8.7 | 4.76 | |
| WNMG080408-QM-GP1115 | 4 | 0.8 |
P
M
|
|
5.16 | 12.7 | 8.7 | 4.76 | |
| WNMG080408-LM-GS4130 | 3 014 | 0.8 |
M
S
|
|
5.16 | 12.7 | 8.7 | 4.76 | |
| WNMG080408-SM-GS4130 | 389 | 0.8 |
M
S
|
|
5.16 | 12.7 | 8.7 | 4.76 | |
| WNMG06T304-GF-GP1225 | 38 | 0.4 |
P
K
|
|
3.81 | 9.525 | 6.5 | 3.97 | |
| WNMG080412-EM-GST7115 | 38 | 1.2 |
S
|
|
5.16 | 12.7 | 8.7 | 4.76 | |
| WNMG080408-EM-GS3115 | 377 | 0.8 |
M
S
|
|
5.16 | 12.7 | 8.7 | 4.76 | |
| WNMG080408-GM-GP1225 | 370 | 0.8 |
P
K
|
|
5.16 | 12.7 | 8.7 | 4.76 | |
| WNMG060408-GM-GP1225 | 37 | 0.8 |
P
K
|
|
3.81 | 9.525 | 6.5 | 3.97 | |
| WNMG080408-LM-GM1225 | 36 | 0.8 |
M
|
|
5.16 | 12.7 | 8.7 | 4.76 | |
| WNMG080404-LM-GS3115 | 346 | 0.4 |
M
S
|
|
5.16 | 12.7 | 8.7 | 4.76 | |
| WNMG060404-LM-GM1125 | 330 | 0.4 |
M
|
|
3.81 | 9.525 | 6.5 | 3.97 | |
| WNMG080408-EL-GST7115 | 322 | 0.8 |
M
S
|
|
5.16 | 12.7 | 8.7 | 4.76 | |
| WNMG080404-QM-GP1225 | 317 | 0.4 |
P
K
|
|
5.16 | 12.7 | 8.7 | 4.76 | |
| WNMG080404-SF-GM3220 | 316 | 0.4 |
M
|
5.16 | 12.7 | 8.7 | 4.76 | ||
| WNMG080408-SM-GS3115 | 312 | 0.8 |
M
S
|
|
5.16 | 12.7 | 8.7 | 4.76 | |
| WNMG080404-EL-GST7115 | 307 | 0.4 |
M
S
|
|
5.16 | 12.7 | 8.7 | 4.76 | |
| WNMG080408-TP-GP31TM | 30 | 0.8 |
P
M
|
|
5.16 | 12.7 | 8.7 | 4.76 | |
| WNMG06T304-LM-GM3225 | 30 | 0.4 |
M
|
|
3.81 | 9.527 | 6.7 | 3.97 | |
| WNMG080408-LM-GM3325 | 30 | 0.8 |
P
M
|
|
5.16 | 12.7 | 8.7 | 4.76 | |
| WNMG080408L-SV-GP1225 | 30 | 0.8 |
P
K
|
|
5.16 | 12.7 | 8.7 | 4.76 | |
| WNMG080408-HK-GK1125 | 30 | 0.8 |
K
|
|
5.16 | 12.7 | 8.7 | 4.76 | |
| WNMG080408-UK-GK1115 | 3 | 0.8 |
K
|
|
5.16 | 12.7 | 8.7 | 4.76 | |
| WNMG060404-QF-GP1115 | 3 | 0.4 |
P
M
|
|
3.81 | 9.525 | 6.5 | 4.76 | |
| WNMG080408-LM-GM1125 | 2 508 | 0.8 |
M
|
|
5.16 | 12.7 | 8.7 | 4.76 | |
| WNMG060408-LM-GM3220 | 290 | 0.8 |
M
|
|
5.16 | 9.525 | 6.5 | 4.76 | |
| WNMG080408-UK-GK1125 | 29 | 0.8 |
P
M
K
|
|
5.16 | 12.7 | 8.7 | 4.76 | |
| WNMG080408-PM-GPT6120 | 287 | 0.8 |
P
|
|
5.16 | 12.7 | 8.7 | 4.76 | |
| WNMG080408-SM-GM3325 | 28 | 0.8 |
P
M
|
|
5.16 | 12.7 | 8.7 | 4.76 | |
| WNMG080404-GM-GP1225 | 276 | 0.4 |
P
K
|
|
5.16 | 12.7 | 8.7 | 4.76 | |
| WNMG060408-SF-GM3220 | 27 | 0.8 |
M
|
|
3.81 | 9.525 | 6.5 | 4.76 | |
| WNMG080404-QM-GP1135 | 27 | 0.4 |
P
|
|
5.16 | 12.7 | 8.7 | 4.76 | |
| WNMG060404-SF-GS3115 | 264 | 0.4 |
M
S
|
|
3.81 | 9.525 | 6.5 | 4.76 | |
| WNMG080408-QM-GPT6120 | 25 | 0.8 |
P
|
|
5.16 | 12.7 | 8.7 | 4.76 | |
| WNMG080408-LM-GS3125 | 25 | 0.8 |
M
S
|
|
5.16 | 12.7 | 8.7 | 4.76 | |
| WNMG080408-SM-GM1125 | 239 | 0.8 |
M
|
|
5.16 | 12.7 | 8.7 | 4.76 | |
| WNMG080412-LM-GS4130 | 228 | 1.2 |
M
S
|
|
5.16 | 12.7 | 8.7 | 4.76 | |
| WNMG080412-EL-GST7120 | 225 | 1.2 |
S
|
|
5.16 | 12.7 | 8.7 | 4.76 | |
| WNMG080408-LM-GM3220 | 224 | 0.8 |
M
|
|
5.16 | 12.7 | 8.7 | 4.76 | |
| WNMG060408-SF-GS3115 | 211 | 0.8 |
M
S
|
|
3.81 | 9.525 | 6.5 | 4.76 | |
| WNMG080404-LM-GS3125 | 207 | 0.4 |
M
S
|
|
5.16 | 12.7 | 8.7 | 4.76 | |
| WNMG06T308-LM-GM3220 | 200 | 0.8 |
M
|
|
3.81 | 9.525 | 6.5 | 3.97 | |
| WNMG080408-LR-KM3225 | 20 | 0.8 |
M
K
S
|
|
5.16 | 12.7 | 8.7 | 4.76 | |
| WNMG080412-LR-GM3225 | 20 | 1.2 |
M
|
|
5.16 | 12.7 | 8.7 | 4.76 | |
| WNMG080404-QM-GP1115 | 20 | 0.4 |
P
M
|
|
5.16 | 12.7 | 8.7 | 4.76 | |
| WNMG080412-QM-GPT6120 | 20 | 1.2 |
P
|
|
5.16 | 12.7 | 8.7 | 4.76 | |
| WNMG080404-QF-GP91TF | 20 | 0.4 |
P
M
K
|
|
5.16 | 12.7 | 8.7 | 4.76 | |
| WNMG080408-PM-GP1225 | 1 191 | 0.8 |
P
K
|
|
5.16 | 12.7 | 8.7 | 4.76 | |
| WNMG080408-CM-GP1225 | 198 | 0.8 |
P
K
|
|
5.16 | 12.7 | 8.7 | 4.76 | |
| WNMG080408-LM-GS3115 | 194 | 0.8 |
M
S
|
|
5.16 | 12.7 | 8.7 | 4.76 | |
| WNMG080408-SM-GM1230 | 19 | 0.8 |
M
|
|
5.16 | 12.7 | 8.7 | 4.76 | |
| WNMG080412-SM-GM1125 | 19 | 1.2 |
M
|
|
5.16 | 12.7 | 8.7 | 4.76 | |
| WNMG080404-SM-GM1230 | 19 | 0.4 |
M
|
|
5.16 | 12.7 | 8.7 | 4.76 | |
| WNMG080412-PM-GPT6120 | 187 | 1.2 |
P
|
|
5.16 | 12.7 | 8.7 | 4.76 | |
| WNMG080408-TP-GP91TM | 18 | 0.8 |
P
M
K
|
|
5.16 | 12.7 | 8.7 | 4.76 | |
| WNMG080408-QM-GP1225 | 178 | 0.8 |
P
K
|
|
5.16 | 12.7 | 8.7 | 4.76 | |
| WNMG060408-LM-GM1125 | 178 | 0.8 |
M
|
|
3.81 | 9.525 | 6.5 | 3.97 | |
| WNMG080404-ESM-GS3210 | 17 | 0.4 |
M
|
|
3.81 | 12.7 | 8.7 | 4.76 | |
| WNMG080412-EL-GST7115 | 17 | 1.2 |
M
S
|
|
5.16 | 12.7 | 8.7 | 4.76 | |
| WNMG080404-QM-GP1120 | 16 | 0.4 |
P
M
|
|
5.16 | 12.7 | 8.7 | 4.76 | |
| WNMG080408-QM-GPT6130 | 158 | 0.8 |
P
K
|
|
5.16 | 12.7 | 8.7 | 4.76 | |
| WNMG080408-YF-GM3220 | 157 | 0.8 |
M
|
|
5.16 | 12.7 | 8.7 | 4.76 | |
| WNMG060408-QF-GP1105 | 148 | 0.8 |
P
|
|
3.81 | 9.525 | 6.5 | 4.76 | |
| WNMG080412-SM-GM3220 | 140 | 1.2 |
M
|
|
5.16 | 12.7 | 8.7 | 4.76 | |
| WNMG080404-LM-GM3220 | 140 | 0.4 |
M
|
|
5.16 | 12.7 | 8.7 | 4.76 | |
| WNMG060404-LM-GM3220 | 138 | 0.4 |
M
|
|
5.16 | 9.525 | 6.5 | 4.76 | |
| WNMG080412-GM-GP1225 | 138 | 1.2 |
P
K
|
|
5.16 | 12.7 | 8.7 | 4.76 | |
| WNMG080404-SM-GM3220 | 130 | 0.4 |
M
|
|
5.16 | 12.7 | 8.7 | 4.76 | |
| WNMG080408-PM-GP1105 | 126 | 0.8 |
P
|
|
5.16 | 12.7 | 8.7 | 4.76 | |
| WNMG080408-LR-GM3220 | 125 | 0.8 |
M
|
|
5.16 | 12.7 | 8.7 | 4.76 | |
| WNMG080408-SF-GM3220 | 125 | 0.8 |
M
|
|
3.81 | 12.7 | 8.7 | 4.76 | |
| WNMG080412-LR-GM1230 | 12 | 1.2 |
M
|
|
5.16 | 12.7 | 8.7 | 4.76 | |
| WNMG080408-LR-GM1125 | 113 | 0.8 |
M
|
|
5.16 | 12.7 | 8.7 | 4.76 | |
| WNMG060412-QM-GP1105 | 11 | 1.2 |
P
|
|
3.81 | 9.525 | 6.5 | 3.97 | |
| WNMG080408-EL-GST7120 | 108 | 0.8 |
S
|
|
5.16 | 12.7 | 8.7 | 4.76 | |
| WNMG080408-PM-GPT6130 | 10 | 0.8 |
P
K
|
|
5.16 | 12.7 | 8.7 | 4.76 | |
| WNMG080404-QM-GM1125 | 10 | 0.4 |
M
|
|
5.16 | 12.7 | 8.7 | 4.76 | |
| WNMG080408-LM-GM1230 | 10 | 0.8 |
M
|
|
5.16 | 12.7 | 8.7 | 4.76 | |
| WNMG080404-LM-KM3225 | 10 | 0.4 |
M
S
|
|
5.16 | 12.7 | 8.7 | 4.76 | |
| WNMG080412-LR-GM3220 | 10 | 1.2 |
M
|
|
5.16 | 12.7 | 8.7 | 4.76 | |
| WNMG080408-LF-GM3225 | 10 | 0.8 |
M
|
5.16 | 12.7 | 8.7 | 4.76 | ||
| WNMG080408-SF-KM3225 | 1 | 0.8 |
M
S
|
|
3.81 | 12.7 | 8.7 | 4.76 | |
| WNMG080408-LM-GM1115 | 1 | 0.8 |
M
|
|
5.16 | 12.7 | 8.7 | 4.76 | |
| WNMG080408-EM-GST7120 | 1 | 0.8 |
S
|
|
5.16 | 12.7 | 8.7 | 4.76 | |
| WNMG060404-GM-GP1125 | 0 | 0.4 |
P
|
|
3.81 | 9.525 | 6.5 | 3.97 | |
| WNMG080412-QR-GP1225 | 0 | 1.2 |
P
K
|
|
5.16 | 12.7 | 8.7 | 4.76 | |
| WNMG080408-SM-GM3220 | 0 | 0.8 |
M
|
|
5.16 | 12.7 | 8.7 | 4.76 | |
| WNMG060408-QM-GP1225 | 0 | 0.8 |
P
K
|
|
3.81 | 9.525 | 6.5 | 4.76 |
| Наименование | Склад | RE | Обрабат. мат. | Тип обраб. | D1 | IC | LE | S | В корзину |
|---|---|---|---|---|---|---|---|---|---|
| WNGA080408H-3-BHC125P | 4 | 0.8 |
H
|
|
5.16 | 12.7 | 8.7 | 4.76 |
| Наименование | Склад | RE | Обрабат. мат. | Тип обраб. | D1 | IC | LE | S | В корзину |
|---|---|---|---|---|---|---|---|---|---|
| WCGT020102L-H020 | 9 | 0.2 |
P
M
N
|
|
2.3 | 3.97 | 2.5 | 1.59 | |
| WCGT020104L-H020 | 10 | 0.4 |
P
M
N
|
|
2.3 | 3.97 | 2.5 | 1.59 |
| Наименование | Склад | RE | Обрабат. мат. | Тип обраб. | D1 | IC | LE | S | В корзину |
|---|---|---|---|---|---|---|---|---|---|
| WNGA080408-E4-RC300 | 9 | 0.8 |
P
K
|
|
5.16 | 12.7 | 8.7 | 4.76 | |
| WNGA080404-E4-RC300 | 16 | 0.4 |
P
K
|
|
5.16 | 12.7 | 8.7 | 4.76 |
| Наименование | Склад | RE | Обрабат. мат. | Тип обраб. | D1 | IC | LE | S | В корзину |
|---|---|---|---|---|---|---|---|---|---|
| WNGG080402R-F-H010 | 42 | 0.2 |
N
|
|
5.16 | 12.7 | 8.7 | 4.76 | |
| WNGG080402L-F-H010 | 38 | 0.2 |
N
|
|
5.16 | 12.7 | 8.7 | 4.76 | |
| WNGG080402-HA-H020 | 10 | 0.2 |
N
|
|
5.16 | 12.7 | 8.7 | 4.76 | |
| WNGG080404-HA-H020 | 0 | 0.4 |
N
|
|
5.16 | 12.7 | 8.7 | 4.76 |
| Наименование | Склад | RE | Обрабат. мат. | Тип обраб. | D1 | IC | LE | S | В корзину |
|---|---|---|---|---|---|---|---|---|---|
| WNMG080404-HA-H010 | 30 | 0.4 |
N
|
|
5.16 | 12.7 | 8.7 | 4.76 | |
| WNMG080408-HA-H010 | 0 | 0.8 |
N
|
|
5.16 | 12.7 | 8.7 | 4.76 |
| Наименование | Склад | RE | Обрабат. мат. | Тип обраб. | D1 | IC | LE | S | В корзину |
|---|---|---|---|---|---|---|---|---|---|
| WXGU040304-EL-GS6000 | 30 | 0.4 |
P
M
S
N
|
|
2.7 | 6.35 | 2 | 3.18 | |
| WXGU040306-EL-GS7000 | 12 | 0.6 |
P
M
S
N
|
|
2.7 | 6.35 | 2 | 3.18 | |
| WXGU040304-EL-GS7000 | 10 | 0.4 |
P
M
S
N
|
|
2.7 | 6.35 | 2 | 3.18 |
