Сверлильная пластина

Серия пластины: QPMG
Наименование	Cклад	Диаметр сверления	IC	RE	S
SPGT07T308-EM-YBG205	10	Ø22.6~Ø27.0	7.94	0.8	3.97
SPGT140512-PM-YBG205	90	Ø42.0~Ø50.0	14.3	1.2	5.2
SPGT07T308-EM-YBG212	10	Ø22.6~Ø27.0	7.94	0.8	3.97

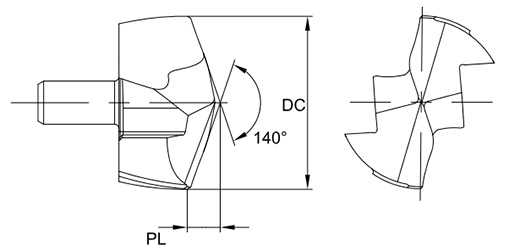

Серия пластины: GUMD
Наименование	Cклад	Диаметр сверления (DC)
GUMD210-PKM-GM3225	0	21.0
GUMD108-PKM-GM3225	5	10.8
GUMD100-PKM-GM3225	36	10.0
GUMD141-PKM-GM3225	0	14.1
GUMD125-PKM-GM3225	2	12.5
GUMD150-PKM-GM3225	31	15.0
GUMD121-PKM-GM3225	0	12.1
GUMD170-PKM-GM3225	4	17.0
GUMD115-PKM-GM3225	2	11.5
GUMD200-PKM-GM3225	0	20.0
GUMD118-PKM-GM3225	4	11.8
GUMD102-PKM-GM3225	0	10.2
GUMD130-PKM-GM3225	0	13.0
GUMD131-PKM-GM3225	0	13.1
GUMD122-PKM-GM3225	1	12.2
GUMD160-PKM-GM3225	5	16.0
GUMD120-PKM-GM3225	4	12.0
GUMD180-PKM-GM3225	13	18.0
GUMD105-PKM-GM3225	7	10.5
GUMD124-PKM-GM3225	2	12.4
GUMD103-PKM-GM3225	4	10.3
GUMD135-PKM-GM3225	0	13.5
GUMD140-PKM-GM3225	4	14.0
GUMD123-PKM-GM3225	3	12.3
GUMD158-PKM-GM3225	4	15.8
GUMD120-PKM-GPD7115	0	12.0
GUMD175-PKM-GM3225	8	17.5
GUMD110-PKM-GM3225	6	11.0

Серия пластины: QPMG
Наименование	Cклад	Диаметр сверления	IC	RE	S
QPMG130408-DP-GA4230	110	Ø16.0~Ø18.9	13.2	0.8	4.76
QPMG110408-DP-GS4130	318	Ø33.1~Ø40.0	11.5	0.8	4.76
QPMG09T308-DP-GA4230	3	Ø27.1~Ø33.0	9.7	0.8	3.97
QPMG07T306-DP-GA4230	82	Ø22.6~Ø27.0	7.94	0.6	3.5
QPMG110408-DP-GM3220	268	Ø33.1~Ø40.0	11.5	0.8	4.76
QPMG040204-DP-GM3220	446	Ø14.0~Ø15.9	4.7	0.4	2.3
QPMG060204-DP-GS4130	862	Ø19.0~Ø22.5	6.5	0.4	2.5
QPMG150512-DP-GM3220	50	Ø45.1~Ø51.0	15.2	1.2	5.2
QPMG050204-DP-GM3220	882	Ø16.0~Ø18.9	5.7	0.4	2.5
QPMG150512-DP-GS4130	60	Ø45.1~Ø51.0	15.2	1.2	5.2
QPMG09T308-DP-GM3220	340	Ø27.1~Ø33.0	9.7	0.8	3.97
QPMG07T306-DP-GS4130	872	Ø22.6~Ø27.0	7.94	0.6	3.5
QPMG060204-DP-GM3220	162	Ø19.0~Ø22.5	6.5	0.4	2.5
QPMG050204-DP-GA4230	182	Ø16.0~Ø18.9	5.7	0.4	2.5
QPMG130408-DP-GS4130	20	Ø16.0~Ø18.9	13.2	0.8	4.76
QPMG050204-DP-GS4130	642	Ø16.0~Ø18.9	5.7	0.4	2.5
QPMG150512-DP-GA4230	150	Ø45.1~Ø51.0	15.2	1.2	5.2
QPMG110408-DP-GA4230	95	Ø33.1~Ø40.0	11.5	0.8	4.76
QPMG09T308-DP-GS4130	588	Ø27.1~Ø33.0	9.7	0.8	3.97
QPMG07T306-DP-GM3220	304	Ø22.6~Ø27.0	7.94	0.6	3.5
QPMG040204-DP-GA4230	186	Ø14.0~Ø15.9	4.7	0.4	2.3
QPMG040204-DP-GS4130	225	Ø14.0~Ø15.9	4.7	0.4	2.3
QPMG130408-DP-GM3220	40	Ø16.0~Ø18.9	13.2	0.8	4.76
QPMG060204-DP-GA4230	38	Ø19.0~Ø22.5	6.5	0.4	2.5

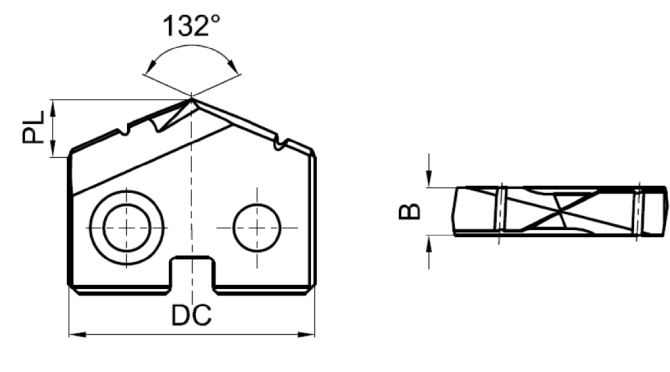

Серия пластины: MCMG
Наименование	Cклад	DC
MCMG034504-DS-GM3225	5	34.5
MCMG015503-DS-GM3225	0	15.5
MCMG0210T3-DS-GM3225	2	21
MCMG036004-DS-GM3225	2	36
MCMG016003-DS-GM3225	11	16
MCMG0225T3-DS-GM3225	10	22.5
MCMG032504-DS-GM3225	9	32.5
MCMG025504-DS-GM3225	1	25.5
MCMG0240T3-DS-GM3225	4	24
MCMG030004-DS-GM3225	19	30
MCMG027004-DS-GM3225	5	27
MCMG0200T3-DS-GM3225	31	20
MCMG032004-DS-GM3225	22	32
MCMG028504-DS-GM3225	0	28.5
MCMG013503-DS-GM3225	6	13.5
MCMG030504-DS-GM3225	2	30.5
MCMG015003-DS-GM3225	0	15
MCMG0205T3-DS-GM3225	0	20.5
MCMG035504-DS-GM3225	0	35.5
MCMG017503-DS-GM3225	2	17.5
MCMG0220T3-DS-GM3225	3	22
MCMG033004-DS-GM3225	38	33
MCMG0185T3-DS-GM3225	0	18.5
MCMG0235T3-DS-GM3225	0	23.5
MCMG029504-DS-GM3225	0	29.5
MCMG026504-DS-GM3225	0	26.5
MCMG025004-DS-GM3225	23	25
MCMG031504-DS-GM3225	0	31.5
MCMG028004-DS-GM3225	0	28
MCMG0190T3-DS-GM3225	19	19
MCMG034004-DS-GM3225	0	34
MCMG014503-DS-GM3225	2	14.5
MCMG013003-DS-GM3225	27	13
MCMG035004-DS-GM3225	0	35
MCMG017003-DS-GM3225	20	17
MCMG0215T3-DS-GM3225	6	21.5
MCMG033504-DS-GM3225	2	33.5
MCMG016503-DS-GM3225	12	16.5
MCMG0230T3-DS-GM3225	22	23
MCMG029004-DS-GM3225	10	29
MCMG026004-DS-GM3225	6	26
MCMG0245T3-DS-GM3225	0	24.5
MCMG031004-DS-GM3225	0	31
MCMG027504-DS-GM3225	14	27.5
MCMG0195T3-DS-GM3225	0	19.5
MCMG0180T3-DS-GM3225	19	18
MCMG014003-DS-GM3225	7	14

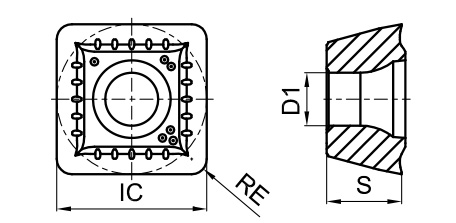

Серия пластины: SPMG
Наименование	Cклад	Диаметр сверления	IC	RE	S
SPMG050204-DM-GS4130	87	Ø13.0~Ø15.0	5	0.4	2.38
SPMG140512-DM-GA4230	30	Ø42.0~Ø50.0	14.3	1.2	5.2
SPMG07T308-DM-GS4130	117	Ø22.0~Ø27.5	7.94	0.8	3.97
SPMG060204-DM-GS4130	27	Ø15.5~Ø21.5	6	0.4	2.38
SPMG110408-DM-GS4130	230	ØЗЗ.0~Ø41.0	11.5	0.8	4.76
SPMG050204-DM-GA4230	38	Ø13.0~Ø15.0	5	0.4	2.38
SPMG090408-DM-GS4130	130	Ø28.0~ØЗЗ.0	9.8	0.8	4.3
SPMG060204-DM-GA4230	230	Ø15.5~Ø21.5	6	0.4	2.38
SPMG110408-DM-GA4230	300	ØЗЗ.0~Ø41.0	11.5	0.8	4.76
SPMG090408-DM-GA4230	280	Ø28.0~ØЗЗ.0	9.8	0.8	4.3
SPMG07T308-DM-GA4230	40	Ø22.0~Ø27.5	7.94	0.8	3.97

Серия пластины: WCMT
Наименование	Cклад	Диаметр сверления	IC	RE	S
WCMT080412-DU-GS4130	358	Ø40.0~Ø60.0	12.7	0.8	4.76
WCMT050308-DU-GS4130	390	Ø25.0~Ø30.0	7.94	0.8	3.18
WCMT030208-DU-GS4130	418	Ø15.0~Ø20.5	5.56	0.8	2.38
WCMT06T308-DU-GS4130	502	Ø30.5~Ø39.5	9.52	0.8	3.97
WCMT06T308-DU-GA4230	283	Ø30.5~Ø39.5	9.52	0.8	3.97
WCMT040208-DU-GA4230	254	Ø21.0~Ø24.5	6.35	0.8	2.38
WCMT030208-DU-GA4230	288	Ø15.0~Ø20.5	5.56	0.8	2.38
WCMT080412-DU-GA4230	276	Ø40.0~Ø60.0	12.7	0.8	4.76
WCMT050308-DU-GA4230	222	Ø25.0~Ø30.0	7.94	0.8	3.18
WCMT040208-DU-GM3225	248	Ø21.0~Ø24.5	6.35	0.8	2.38

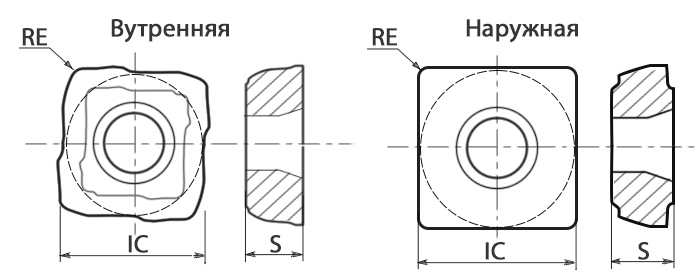

Серия пластины: 880
Наименование	Cклад	IC	RE	S
880-0704W06H-P-GM-RD320	179	12.65	0.6	4
880-0503W05H-P-GM-RD320	229	8.9	0.5	3.0
880-0202W05H-P-GM-RD320	350	5.1	0.5	2.4
880-0805W08H-P-GM-RD320	229	15.45	0.8	4.5
880-0604W06H-P-GM-RD320	351	10.65	0.6	3.5
880-0303W05H-P-GM-RD320	311	6	0.5	2.6
880-0604-W10H-P-GR-RD320	10	10.65	1	3.5
880-0403W05H-P-GM-RD320	381	7.4	0.5	2.8
880-080508H-C-GM-RD320	241	14.85	0.8	4.5
880-050305H-C-GM-RD320	239	8.4	0.5	3.0
880-020204H-C-GM-RD320	360	4.9	0.4	2.4
880-060406H-C-GM-RD320	351	10.2	0.6	3.5
880-030305H-C-GM-RD320	301	5.7	0.5	2.6
880-070406H-C-GM-RD320	219	12.35	0.6	4
880-040305H-C-GM-RD320	381	6.8	0.5	2.8

Серия пластины: XCMT
Наименование	Cклад	IC	RE	S
XCMT130408-RD320	50	13.4	0.8	4.76
XCMT10T304-RD320	50	10.5	0.4	3.97
XCMT060204-RD320	100	6.4	0.4	2.38
XCMT10T308-RD320	50	10.5	0.8	3.97
XCMT070304-RD320	100	7.5	0.4	3.18
XCMT130404-RD320	49	13.4	0.4	4.76
XCMT080304-RD320	100	8.4	0.4	3.18
