Чистовая сферическая фреза
Показано результатов 1 - 25 из 25
Все корпуса фрез
| Наименование | Склад | DC | LF | Кол-во зубьев | DCON | для пластин | LU | В корзину |
|---|---|---|---|---|---|---|---|---|
| MBA100-020R01P20-QT20S | 7 | 20 | 110 | 1 | 20 | QTD2005 | 45 | |
| MBA100-030R01P32-QT30S | 2 | 30/32 | 150 | 1 | 32 | QTD3007/QTD3207 | 60 | |
| MBA100-016R01P16-QT16S | 4 | 16 | 100 | 1 | 16 | QTD1604 | 35 | |
| MBA100-020R01P20-QT20 | 10 | 20 | 160 | 1 | 20 | QTD2005 | 80 | |
| MBA100-025R01P25-QT25L | 0 | 25 | 235 | 1 | 25 | QTD2506 | 150 | |
| MBA100-012R01P12-QT12L | 1 | 12 | 150 | 1 | 12 | QTD1203 | 90 | |
| MBA100-020R01P20-QT20L | 11 | 20 | 210 | 1 | 20 | QTD2005 | 135 | |
| MBA100-025R01P25-QT25 | 0 | 25 | 180 | 1 | 25 | QTD2506 | 100 | |
| MBA100-012R01P12-QT12 | 5 | 12 | 120 | 1 | 12 | QTD1203 | 60 | |
| MBA100-030R01P32-QT30L | 2 | 30/32 | 270 | 1 | 32 | QTD3007/QTD3207 | 180 | |
| MBA100-016R01P16-QT16L | 0 | 16 | 170 | 1 | 16 | QTD1604 | 100 | |
| MBA100-025R01P25-QT25S | 3 | 25 | 125 | 1 | 25 | QTD2506 | 50 | |
| MBA100-012R01P12-QT12S | 13 | 12 | 90 | 1 | 12 | QTD1203 | 30 | |
| MBA100-030R01P32-QT30 | 4 | 30/32 | 200 | 1 | 32 | QTD3007/QTD3207 | 120 | |
| MBA100-016R01P16-QT16 | 13 | 16 | 135 | 1 | 16 | QTD1604 | 70 |

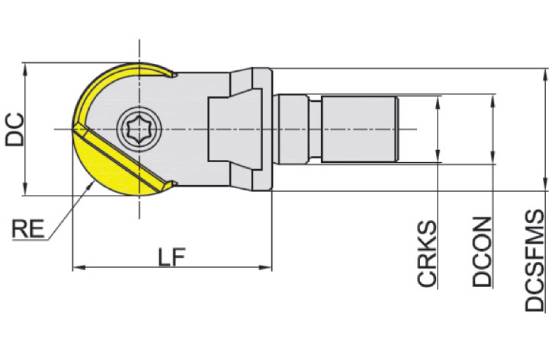

| Наименование | Склад | DC | LF | Кол-во зубьев | DCON | для пластин | DCSFMS | CRKS | В корзину |
|---|---|---|---|---|---|---|---|---|---|
| MBA100-030R01M16-QT30 | 0 | 30/32 | 43 | 1 | 17 | QTD3007/QTD3207 | 29 | M16 | |
| MBA100-012R01M06-QT12 | 0 | 12 | 20 | 1 | 6.5 | QTD1203 | 11.5 | M6 | |
| MBA100-016R01M08-QT16 | 0 | 16 | 23 | 1 | 8.5 | QTD1604 | 15 | M8 | |
| MBA100-020R01M10-QT20 | 2 | 20 | 30 | 1 | 10.5 | QTD2005 | 18.5 | M10 | |
| MBA100-025R01M12-QT25 | 0 | 25 | 30 | 1 | 12.5 | QTD2506 | 24 | M12 |
| Наименование | Склад | DC | LF | Кол-во зубьев | DCON | для пластин | LU | В корзину |
|---|---|---|---|---|---|---|---|---|
| MBA100-016R01P20T-QT16L | 7 | 16 | 165 | 1 | 20 | QTD1604 | 100 | |
| MBA100-012R01P16T-QT12L | 8 | 12 | 145 | 1 | 16 | QTD1203 | 85 | |
| MBA100-020R01P25T-QT20L | 3 | 20 | 191 | 1 | 25 | QTD2005 | 115 | |
| MBA100-025R01P32T-QT25L | 0 | 25 | 215 | 1 | 32 | QTD2506 | 135 | |
| MBA100-030R01P32T-QT30L | 0 | 30/32 | 240 | 1 | 32 | QTD3007/QTD3207 | 160 |
