Ручной метчик

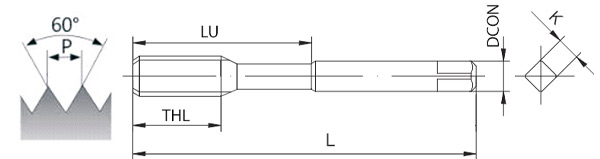

| Наименование | Склад | Обрабат. мат. | Резьба | Шаг резьбы | THL | Общая длина (L) | DCON | K | В корзину |
|---|---|---|---|---|---|---|---|---|---|
| M3х0.5 HSS |
|
M3 | 0.50 | 10 | 44.5 | 3.4 | 2.6 | ||
| M3x0.5 HSSE | 1 |
|
M3 | 0.50 | 14 | 43 | 3.5 | 2.6 | |
| VO-27330 | 3 |
|
M4 | 0.70 | 13 | 45 | 4.5 | 3.4 | |
| VO-27334 | 4 |
|
M5 | 0.80 | 16 | 50 | 6 | 4.9 | |
| VO-57338 | 2 |
|
M6 | 1.00 | 19 | 50 | 6 | 4.9 | |
| GM-TF120125 | 1 |
|
M12 | 1.25 | 22 | 70 | 7 | ||
| M12x0.5, DIN 218 | 2 |
|
M12 | 0.50 | 22 | 70 | 9 | 7 | |
| VO-27340 | 2 |
|
M7 | 1.00 | 19 | 50 | 6 | 4.9 | |
| VO-26330 | 1 |
|
M9 | 1.00 | 20 | 63 | 7 | 5.5 |
| Наименование | Склад | Обрабат. мат. | Резьба | Шаг резьбы | THL | Общая длина (L) | DCON | K | В корзину |
|---|---|---|---|---|---|---|---|---|---|
| PH62-20-03050 | 149 |
|
M3 | 0.50 | 11 | 40 | 3.5 | 2.7 | |
| PH62-20-04070 | 150 |
|
M4 | 0.70 | 13 | 45 | 4.5 | 3.4 | |
| PH62-20-05080 | 120 |
|
M5 | 0.80 | 16 | 50 | 6 | 4.9 | |
| PH62-20-06100 | 144 |
|
M6 | 1.00 | 19 | 56 | 6 | 4.9 | |
| PH62-20-08125 | 120 |
|
M8 | 1.25 | 22 | 63 | 6 | 4.9 | |
| PH61-20-08100 | 99 |
|
M8 | 1.00 | 22 | 63 | 6 | 5.5 | |
| PH61-20-12100 | 39 |
|
M12 | 1.00 | 24 | 75 | 9 | 7 | |
| PH61-20-12150 | 50 |
|
M12 | 1.50 | 28 | 75 | 9 | 7 | |
| PH62-20-12175 | 99 |
|
M12 | 1.75 | 28 | 75 | 9 | 7 | |
| PH61-20-12125 | 39 |
|
M12 | 1.25 | 28 | 75 | 9 | 7 | |
| PH61-20-16150 | 10 |
|
M16 | 1.50 | 32 | 80 | 12 | 9 | |
| PH62-20-16200 | 49 |
|
M16 | 2.00 | 32 | 80 | 12 | 9 | |
| PH61-20-16100 | 10 |
|
M16 | 1.00 | 32 | 80 | 12 | 9 | |
| PH61-20-10100 | 49 |
|
M10 | 1.00 | 24 | 70 | 7 | 5.5 | |
| PH62-20-10150 | 100 |
|
M10 | 1.50 | 24 | 70 | 7 | 5.5 | |
| PH61-20-10125 | 50 |
|
M10 | 1.25 | 24 | 70 | 7 | 5.5 | |
| PH62-20-14200 | 49 |
|
M14 | 2.00 | 30 | 80 | 11 | 9 | |
| PH61-20-14150 | 30 |
|
M14 | 1.50 | 30 | 80 | 11 | 9 | |
| PH61-20-14100 | 15 |
|
M14 | 1.00 | 30 | 80 | 11 | 9 | |
| MK10-03050 | 0 |
|
M3 | 0.50 | 11 | 40 | 3.5 | 2.7 | |
| MK10-04070 | 16 |
|
M4 | 0.70 | 13 | 45 | 4.5 | 3.4 | |
| MK10-05080 | 2 |
|
M5 | 0.80 | 16 | 50 | 6 | 4.9 | |
| MK10-06100 | 0 |
|
M6 | 1.00 | 19 | 56 | 6 | 4.9 | |
| MK10-06075 | 34 |
|
M6 | 0.75 | 19 | 56 | 6 | 4.9 | |
| MK10-08100 | 40 |
|
M8 | 1.00 | 22 | 63 | 6 | 5.5 | |
| MK10-08125 | 6 |
|
M8 | 1.25 | 22 | 63 | 6 | 4.9 | |
| MK10-12125 | 30 |
|
M12 | 1.25 | 28 | 75 | 9 | 7 | |
| MK10-12100 | 32 |
|
M12 | 1.00 | 24 | 75 | 9 | 7 | |
| MK10-12150 | 25 |
|
M12 | 1.50 | 28 | 75 | 9 | 7 | |
| MK10-12175 | 17 |
|
M12 | 1.75 | 28 | 75 | 9 | 7 | |
| MK10-16100 | 10 |
|
M16 | 1.00 | 32 | 80 | 12 | 9 | |
| MK10-16200 | 1 |
|
M16 | 2.00 | 32 | 80 | 12 | 9 | |
| MK10-16150 | 15 |
|
M16 | 1.50 | 32 | 80 | 12 | 9 | |
| MK10-10125 | 43 |
|
M10 | 1.25 | 24 | 70 | 7 | 5.5 | |
| MK10-10150 | 9 |
|
M10 | 1.50 | 24 | 70 | 7 | 5.5 | |
| MK10-10100 | 37 |
|
M10 | 1.00 | 24 | 70 | 7 | 5.5 | |
| MK10-14100 | 10 |
|
M14 | 1.00 | 30 | 80 | 11 | 9 | |
| MK10-14200 | 28 |
|
M14 | 2.00 | 30 | 80 | 11 | 9 | |
| MK10-14150 | 0 |
|
M14 | 1.50 | 30 | 80 | 11 | 9 |
| Наименование | Склад | Обрабат. мат. | Резьба | Шаг резьбы | THL | Общая длина (L) | DCON | K | В корзину |
|---|---|---|---|---|---|---|---|---|---|
| PH61-20-18100 | 5 |
|
M18 | 1.00 | 22 | 80 | 14 | 11 | |
| PH61-20-18150 | 5 |
|
M18 | 1.50 | 22 | 80 | 14 | 11 |
| Наименование | Склад | Обрабат. мат. | Резьба | Шаг резьбы | THL | Общая длина (L) | DCON | K | В корзину |
|---|---|---|---|---|---|---|---|---|---|
| PH62-20-18250 | 4 |
|
M18 | 2.50 | 34 | 95 | 14 | 11 | |
| PH62-20-20250 | 5 |
|
M20 | 2.50 | 34 | 95 | 16 | 12 |
