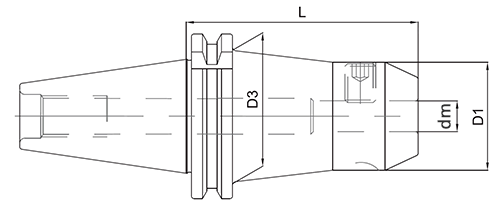

Фрезерные оправки/патроны Патрон WELDON
| Наименование | Склад | D | D1 | dm | L | L1 | L3 | В корзину |
|---|---|---|---|---|---|---|---|---|
| HSK100A-GLN16-100-B | 3 | 48 | 100 | 16 | 100 | 71 | ||
| HSK100A-GLN32-100-B | 3 | 72 | 100 | 32 | 100 | 71 | 28 | |
| HSK100A-GLN25-100-B | 3 | 65 | 100 | 25 | 100 | 71 | 25 | |
| HSK100A-GLN20-100-B | 3 | 52 | 100 | 20 | 100 | 71 |
| Наименование | Склад | D | dm | L | В корзину |
|---|---|---|---|---|---|
| SK40-GLN20-100-B | 11 | 52 | 20 | 100 | |
| SK40-GLN32-150-B | 9 | 58 | 32 | 150 | |
| SK40-GLN16-100-B | 3 | 48 | 16 | 100 | |
| SK40-GLN32-115-B | 18 | 62 | 32 | 115 | |
| SK40-GLN25-150-B | 11 | 65 | 25 | 150 | |
| SK40-GLN25-100-B | 25 | 65 | 25 | 100 | |
| SK40-GLN40-100-B | 6 | 62 | 40 | 100 |
| Наименование | Склад | D | dm | L | В корзину |
|---|---|---|---|---|---|
| SK50-GLN25-150-B | 3 | 65 | 25 | 150 | |
| SK50-GLN25-100-B | 3 | 65 | 25 | 100 | |
| SK50-GLN20-100-B | 2 | 52 | 20 | 100 | |
| SK50-GLN16-100-B | 2 | 48 | 16 | 100 | |
| SK50-GLN32-150-B | 2 | 72 | 32 | 150 |
| Наименование | Склад | D | D1 | dm | L | L1 | L3 | В корзину |
|---|---|---|---|---|---|---|---|---|
| HSK63A-GLN16-100-B | 5 | 48 | 63 | 16 | 80 | 54 | ||
| HSK63A-GLN32-110-B | 4 | 72 | 63 | 32 | 110 | 84 | 28 | |
| HSK63A-GLN25-110-B | 5 | 65 | 63 | 25 | 110 | 84 | 25 | |
| HSK63A-GLN20-100-B | 5 | 52 | 63 | 20 | 100 | 54 |
| Наименование | Склад | D | dm | L | LF | В корзину |
|---|---|---|---|---|---|---|
| BT40-GLN20-63 | 2 | 52 | 20 | 63 | 128 | |
| BT40-GLN16-65-S | 2 | 48 | 16 | 65 | 130.5 | |
| BT40-GLN16-63 | 2 | 48 | 16 | 63 | 128 |
| Наименование | Склад | dm | L | LF | T | l2 | l3 | d2 | В корзину |
|---|---|---|---|---|---|---|---|---|---|
| BT50-GLN32-105-B | 3 | 32 | 105 | 206.8 | M20X2.0P | 24 | 28 | 72 | |
| BT50-GLN25-100-B | 3 | 25 | 100 | 201.8 | M18X2.0P | 24 | 25 | 65 |
| Наименование | Склад | dm | L | LF | T | l2 | l3 | d2 | В корзину |
|---|---|---|---|---|---|---|---|---|---|
| BT40-GLN25-105-S | 0 | 25 | 105 | M18X2.0P | 65 | ||||
| BT40-GLN20-75-S | 0 | 20 | 75 | M18X2.0P | 65 | ||||
| BT40-GLN25-100-B | 4 | 25 | 100 | 165.4 | M18X2.0P | 24 | 25 | 65 | |
| BT40-GLN32-100-B | 11 | 32 | 100 | 165.4 | M20X2.0P | 24 | 28 | 72 |
| Наименование | Склад | dm | L | T | d2 | D2 | В корзину |
|---|---|---|---|---|---|---|---|
| NT50-SL16-63 | 0 | 16 | 60 | M20X2.0P | 72 | 48 |
| Наименование | Склад | dm | L | d1 | D3 | В корзину |
|---|---|---|---|---|---|---|
| 213-91326-TC40H100WE10 | 1 | 10 | 100 | 35 | 40 | |
| 213-91325-TC40H100WE08 | 1 | 10 | 100 | 28 | 38 |
