Фрезерные оправки/патроны Силовой патрон

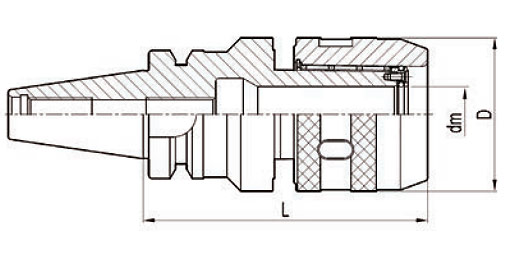

| Наименование | Cклад | D | dm | L |
|---|---|---|---|---|
| BT40-GLC20-80-B | 2 | 55 | 20 | 80 |
| BT40-GLC32-105-B | 0 | 72 | 32 | 105 |
| BT40-GLC20-120-B | 3 | 55 | 20 | 120 |
| BT40-GLC32-135-B | 0 | 72 | 32 | 135 |
| BT40-GLC20-95-B | 2 | 55 | 20 | 95 |
| BT40-GLC20-80-S | 1 | 55 | 20 | 80 |

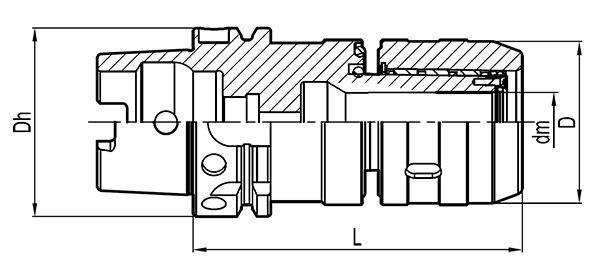

| Наименование | Cклад | D | dm | L | Диапазон зажима |
|---|---|---|---|---|---|
| HSK63A-GLC32-115-B | 1 | 72 | 32 | 115 | 6-32 |
| HSK63A-GLC25-110-B | 1 | 62 | 25 | 110 | 6-25 |
| HSK63A-GLC20-105-B | 0 | 52 | 20 | 105 | 6-20 |
| Наименование | Cклад | D | dm | L |
|---|---|---|---|---|
| BT50-GLC32-200-B | 2 | 72 | 32 | 200 |
| BT50-GLC25-135-B | 2 | 62 | 25 | 135 |
| BT50-GLC32-165-B | 2 | 72 | 32 | 165 |
| BT50-GLC25-110-B | 2 | 62 | 25 | 110 |
| BT50-GLC32-110-B | 0 | 72 | 32 | 110 |
| BT50-GLC32-135-B | 0 | 72 | 32 | 135 |
| BT50-GLC20-135-B | 2 | 55 | 20 | 135 |
| BT50-GLC42-165-B | 2 | 87 | 42 | 165 |
| BT50-GLC20-105-B | 2 | 55 | 20 | 105 |
| BT50-GLC42-110-B | 2 | 87 | 42 | 110 |
| BT50-GLC42-135-B | 2 | 87 | 42 | 135 |
